Technical Features 1
Servo Motor:The coordination of the servo motor and the photoelectric eye can realizethe color recognition and ensure the perfect match of the die-cutting position and the graphics.
Technical Features 2
Inverter Motor:The die-cutting force is provided by a 7.5KW inverter motor driver. lt isnot only power-saving,

MY-950PY Automatic Die Cutting Machine For Paper Cup

Price: Negotiable
Model: MYC-950PY
Max Cutting Area: 940mmx510mm
Production Capacity: 160-200times/min
Paper Gram Weight: 120-400g/m²
Max Cutting Pressure: 180T
Max Roller Diameter: 1600mm
Certification: ISO;CE;SGS
Place of Origin: CHINA.

Get Quote

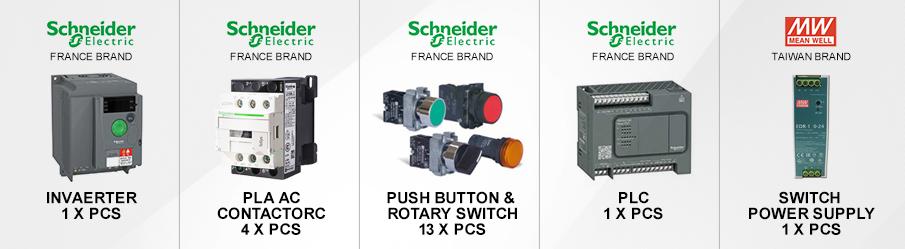

Electric Components List





Model

Roll Die Cutting Machine MY-950PY

Max Cutting Area

940mmx510mm

Cutting Precision

±0.15mm

Paper Gram Weight

120-400g/m²

Production Capacity

160-200times/min

Air Pressure Requirement

0.5Mpa

Air pressure consumption

0.25m³/min

Weight

6T

Total power

Total power

Max CuttingPressure

180T

Max RollerDiameter

1600mm

Dimension

Heater Knurling


Technical Features:

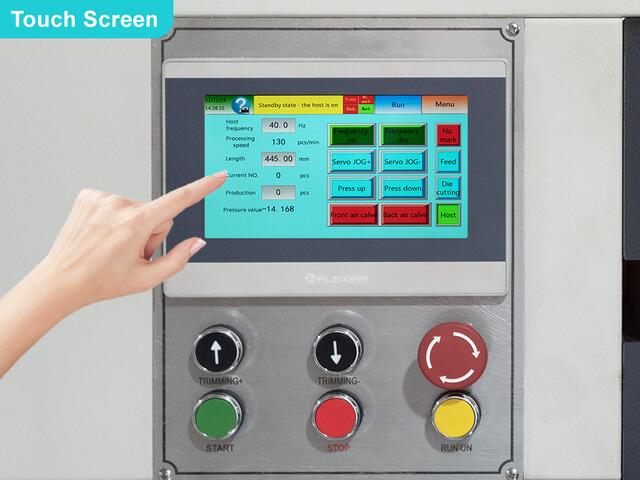

1.Touch Screen:lt adopts PLC controller and touch screen (man -machine interfaceall the working parameters can be set up on the control panel whichis convenient for parameter setting and adjusting.(easy to operate)

2.Electric System:Using Schneider brand PLC control system , encoder angle detection and control, photoelectric tracking detection. realizing automatic control and detection from paper feeding, conveying, die cutting, and conveying processes.

3.Servo Motor:The coordination of the servo motor and the photoelectric eye can realizethe color recognition and ensure the perfect match of the die-cutting position and the graphics. paper roll feeding length is controlled and fixed by Servo motor which guarantees the High precision of die-cutting and without any troubles

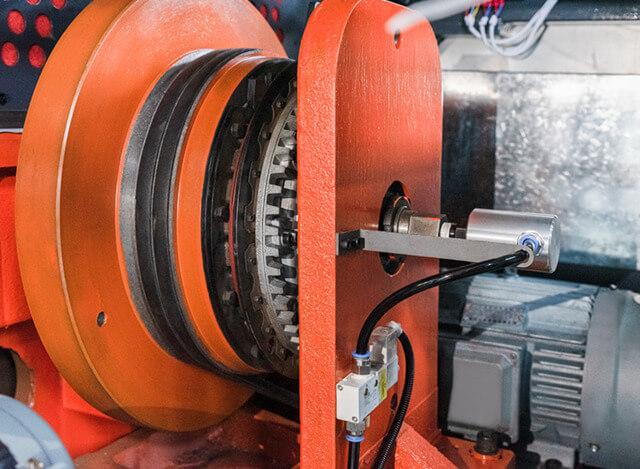

4.Inverter Motor:The die-cutting force is provided by a 7.5KW inverter motor driver. lt isnot only power-saving, but also can realize the stepless speed adjustment especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.

5.Die Cutting knife Plate:Die cutting knife plate and plate frame can be take out so that it cansave plate-changing time.

Related Resource


MY-950PY Automatic Die Cutting Machine For Paper CupMain Features
Aluminum Mould With CNC Processing

1. Aluminum Mould With CNC Processing

lt is best choice for high speed machine compared with the iron mouldlighter in weight and it is greatly improves the torque force of thespindle longer service life and better quality

2. Oil Lubrication And Circulation(DW100)

Oil lubrication system (Oil Pump Motor, The whole machine isequipped with automatic lubrication system which makes allmechanical parts working much more smoothly, longer serviceMACGINERYlife and less troubles.
Oil Lubrication And Circulation(DW100)
Control Panel

3. Control Panel

lt is installed with PLC control system and touch screen , all parameterscan be set on the control panel, easy to operate. With auto failuredetection sensor , error information will be shown easily and that fortroubleshooting and maintaining
Related Cases Mingyuan Knows All About MY-950PY Automatic Die Cutting Machine For Paper Cup
And Provides Paper Cup Making Solutions By Our Experience.
