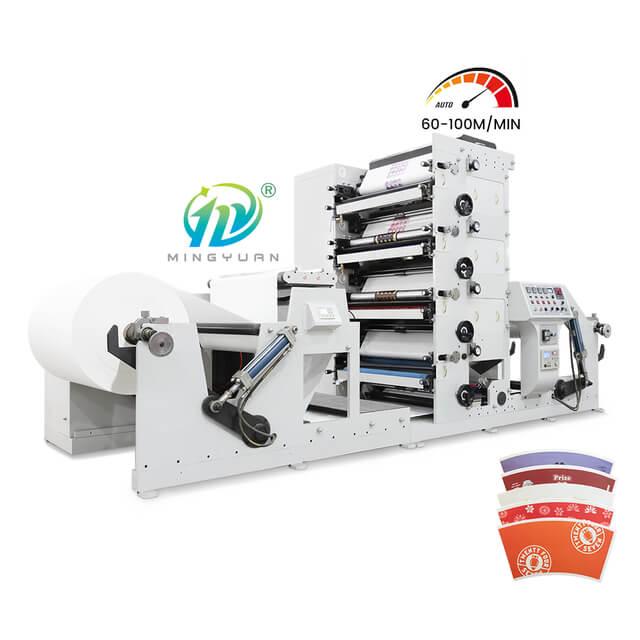

MY-PM850 Automatic 6-color Flexographic press machine for paper cup

Intelligent Model High Speed Printing MAchine MY-PM850

Printing Speed	60-100m/min
Printing Color Number	1-6 colors
Maximum PrintingAWidth	850mm
MaximumFeedingWidth	860mm
Maximum Unwinding/Rewind Diameter	1300mm
Maximum Printing Size	180-380mm
Registration Accuracy	±0.15mm
Voltage	380V±10%
Total Power	25kw
Air Source	0.6MP
Oil lubrication	By manual
Weight	4500kg
Dimensions	3500X2100X2350mm

Technical Features:

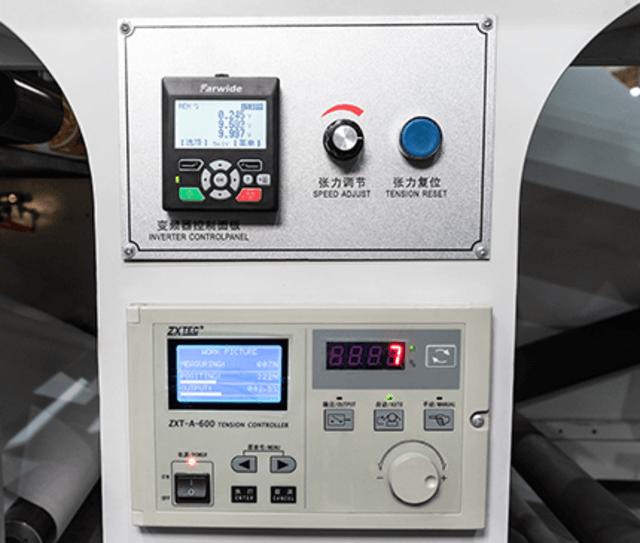

1.Control Panel：Control panel with good quality switches,tempreture controller,dis-tributor controller and pressing roller controller.And all the operation of machine can be easily finished by this panel.

2.Electric System：Quality Brand Electric System like Schneider AC Contactor to ensure smooth operation of the machine and longer service life

3.Hydralic and Magnetic Particle Controller System：Hydraulic system is for loading&unloading the raw materials.The Magnetic Particle Controller System is used to control unwinding,rewinding tension system,it can also be used for buffer start,overload protection,speed regulation

4.Motor：It is used better quality variable fre-quency stepless motor in machine for speed regulation .(longer ser-vice life)

5.IR Drying Unit：The machine is equipped with drying fans and each Printing Unit comes with 1 Unit Infrared Heating Drying Oven to make the ink dry faster.

6.Edge correction System：It is high-precision and is specially used to track material edge.It is suitable for automatic control    of rectifying deviation paper moving and make paper move straightly.

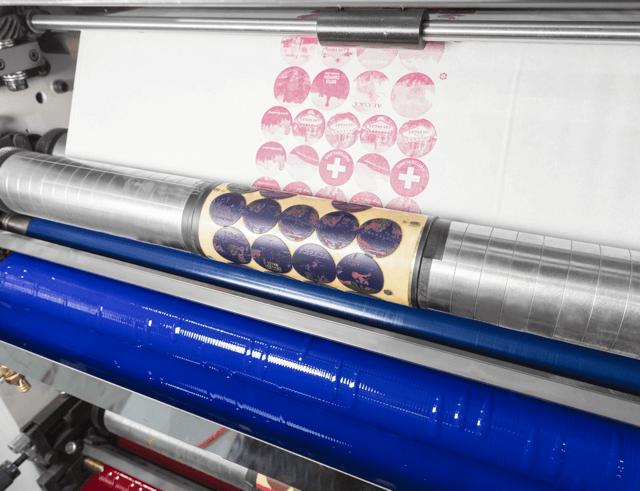

7.Flexo Printing Unit：Printing Station is equipted with Ink Rubber  Roller,Ceramic  Anilox  Cyl-inder,Printing  Plate  Cylinder,
Scrapper Blade and Ink Container.Helical  Gear Hydraulic system plate for lift and down the printing cylinder automati-cally

8.Magnetic Brake and Clutch：With One 100 N.M Magnetic Brake,Two  100  N.M  Mag-netic  Clutch.Unwinding  and rewinding are drived and controlled by magnetic brake and clutch.Machine is drived by Synchronous Belt which  is  Low Noise.Stable Operation and longer ser-vice life.

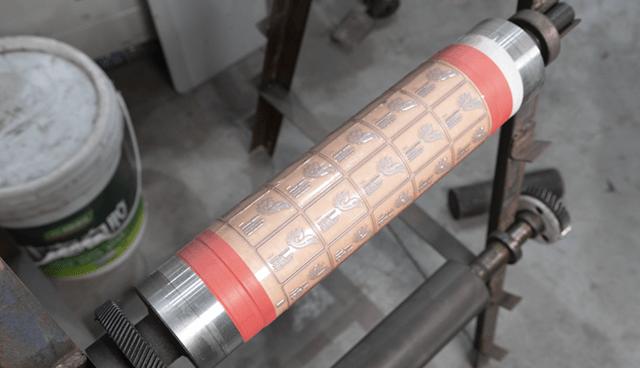

9.Print Digital Plate：Using the rubber membrane which can be changed easily for different printing logo design.Each printing unit can be driven and released independently and continue printing

10.Still View Camera（Optional）：Using the rubber membrane which can be changed easily for different printing logo design.Each printing unit can be driven and released independently and continue printing
