Technical Features 1
Electric System:Quality Brand electric System like Schneider. PLC control system be with Schneider brand and more reliable quality.
Technical Features 2
Motor:The roll paper feeding is controlled by the servo motor,which makes the paper feeding more accurate and more reliable,and reduce the waste of the paper


MYZG-100 High-speed Paper Lid Making Machine For Paper Cup

Price: Negotiable
Model: MYZG-100
Punch Speed: 70-100/min
Max. Forming size: Lid height: 8-15mm Diameter 60-100mm(cup lid) / Diameter 100-140mm (bowl lid)
Max. Forming Depth:
Stroke Range:
Material Thickness: 250-350gsm
Voltage: AC 380v/50hz
Certification: CE, ISO,SGS
Place of Origin: CHINA.

Get Quote

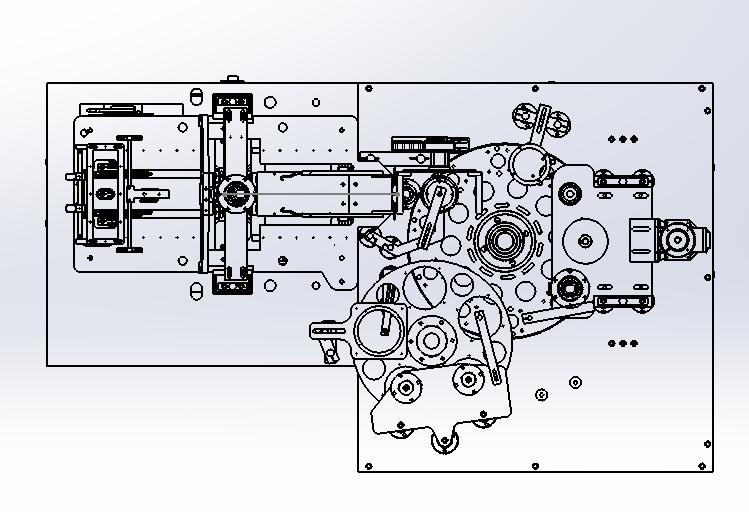

Machine Structure



MYZG-100 Paper Lid Making Machine

Suitable Paper

Double Side PE Coated Paper

Paper Weight

250-350 gsm

Lid Forming Size

Lid height: 8-15mm Diameter 60-100mm(cup lid) / Diameter 100-140mm (bowl lid)

Forming Speed

70-100pcs/min

Air Pressure

0.4MPa

Air Consumption

0.3m³/min

Total Power

10 KW

Machine Dimension

L2600*W1500*H1800MM

Machine Weight

2500 KG



Technical Features:


1.Electric System:Quality Brand electric System like Schneider. PLC control system be with Schneider brand and more reliable quality.

2.Sensors Detecting:Sensor failure detecting and it stops working automatically if the machine has any problem,it can greatly improve operation safety .

The error information will be shown in the PLC touch screen and remind the operator to solve the trouble.
(good for  machine  maintaining)

3.Motor:The roll paper feeding is controlled by the servo motor,which makes the paper feeding more accurate and more reliable,and reduce the waste of the paper

4.Touch Screen:Touch Screen Controller:It adopts PLC controller and touch screen (man -machine interface),all the working parameters can be setup  on the control panel which is convenient for parameter setting and adjusting

5.Blower Device:Suck paper to avoid the paper falling off moulds

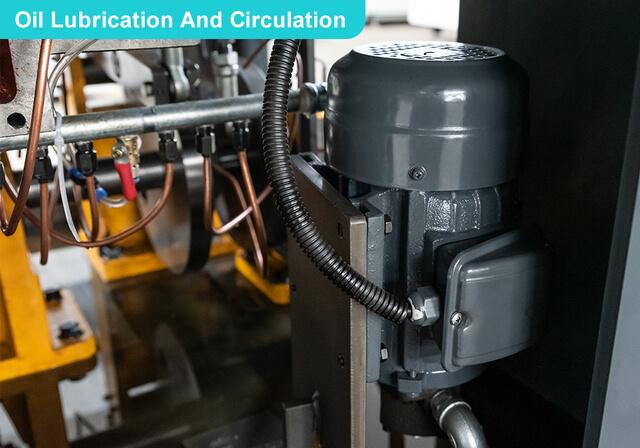

6.Oil Lubrication And Circulation:Auto Oil Lubrication System For machine self oil lubrication which keep sure  machine  smooth running and long span life.Need less human manual maintaining operation.

7.Hot Air System:Auto Oil Lubrication System For machine self oil lubrication which keep sure  machine  smooth  running  and  long  span  life.Need  less human  manual  maintaining  operation.

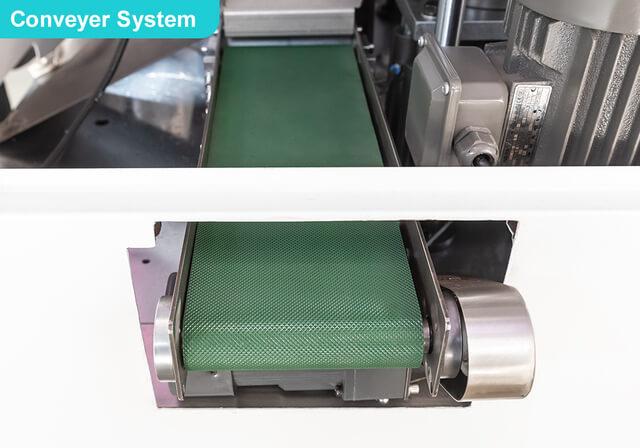

8.Conveyer System:The Conveyer system is for conveying the finished Paper Lid

9.Paper Roll Storage Rack Unit:The Conveyer system is for conveying the finished Paper Lid

10.Main Motor:The Conveyer system is for conveying the finished Paper Lid

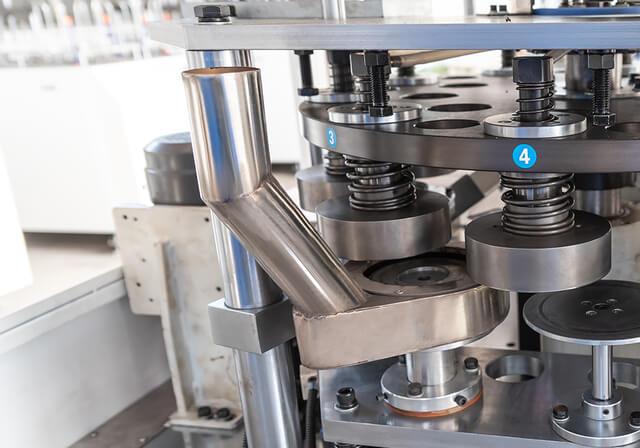

11.Heating And Forming:Folding and knurling system ensures that the lid does not leak and better quality
