MYC-DW100 fully automatic double wall paper cup making machine

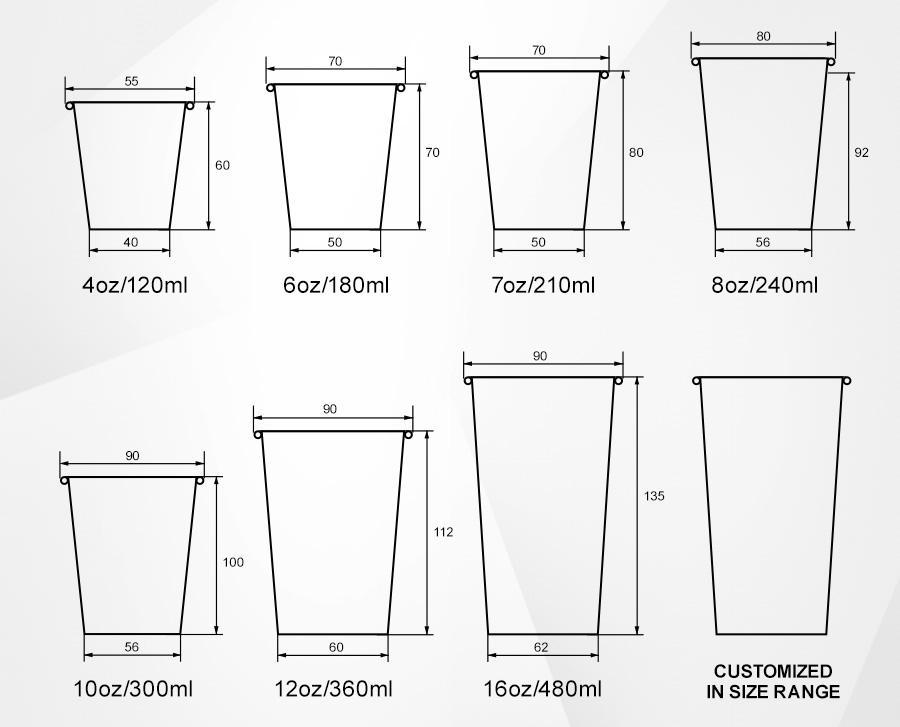

Min./Max.Size(customizable)

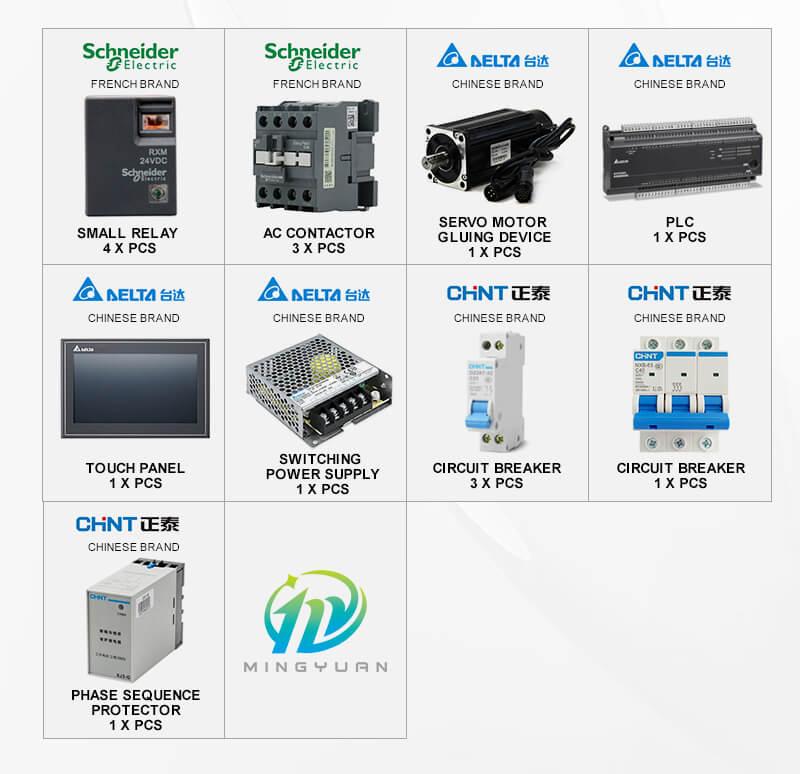

Electronic Components List

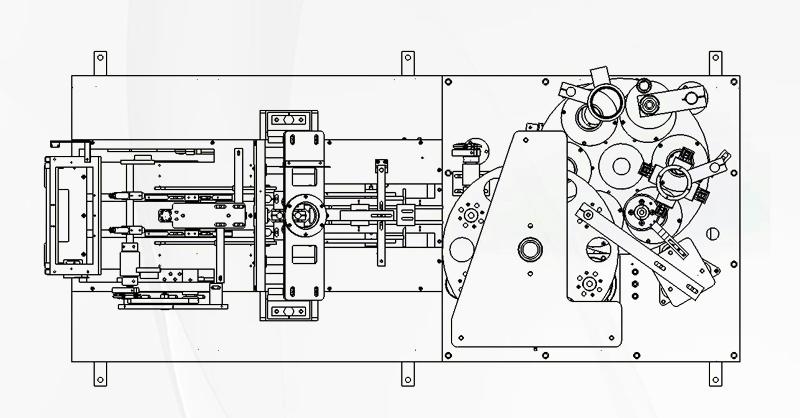

Machine Structure

Technical Features:

1.Control Panel: It is installed with PLC control system and touch screen, all parameters can be set on the control panel, easy to operate. With auto failure detection sensor, error information will be shown easily and that for troubleshooting and maintaining.

2.Rotary Suction Unit: It can suck down different type paper material like paper (corrugate paper) easily.

3.Oil Lubrication And Circulation: Oil lubrication system (Oil Pump Motor, The whole machine isequipped with automatic lubrication system which makes all mechanical parts working much more smoothly, longer service life and less troubles.

4Ultrasonic Heater System: It can seal single PE coated paper fan 140-350gsm easily.

5.Aluminum Mould With CNC Processing: It is best choice for high speed machine compared with the aluminum mould,lighter in weight and it is greatly improves the torque force of the spindle longer service life and better quality.

6.Folding Heater And Bottom Knurling Unit: Paper fan pre-heating ,make the paper soft and be folded easily for forming hollow type sleeve. (these units are different design with ripple type double wall cups and only in hollow type double wall paper cups)

7.Glue & Pasting Servo Motor: The white glue will be sprayed by the motor to stick the sleeve and the single wall.(Rotary glue spraying)

8.Double Turnplate Design: It make machine run at higher speed more stable and high efficiency.

9.Single Wall Cup Stacking And Discharging Unit: The single wall cup should be placed in the stacking rack.
