- CUP TOP CURLING→
- BOTTOM KNURLING→
- Collect paper cups→
- Cut bottom of cup→
Price:
Negotiable
Model:
MYC-160S
Rated Speed:
140-160pcs/min
Paper Cup Size:
1.5~16oz
Raw Material:
One or Two side PE coated Paper, PLA paper, Aluminum foil, Plastic-free paper(popular for hot and cold drink cups)
Cup Side Welding:
Ultrasonic heater
Power/voltage:
50/60HZ, 380V/220V(better use 380V, 3 phase)or special power requirement
Machine Size:
3230*1750*2250mm
Total Weight:
3000kgs(machine)+100kgs(cup collection device)
Suitable Paper Weight:
140-350gsm
Certification:
CE, ISO,SGS
Place of Origin:
CHINA.

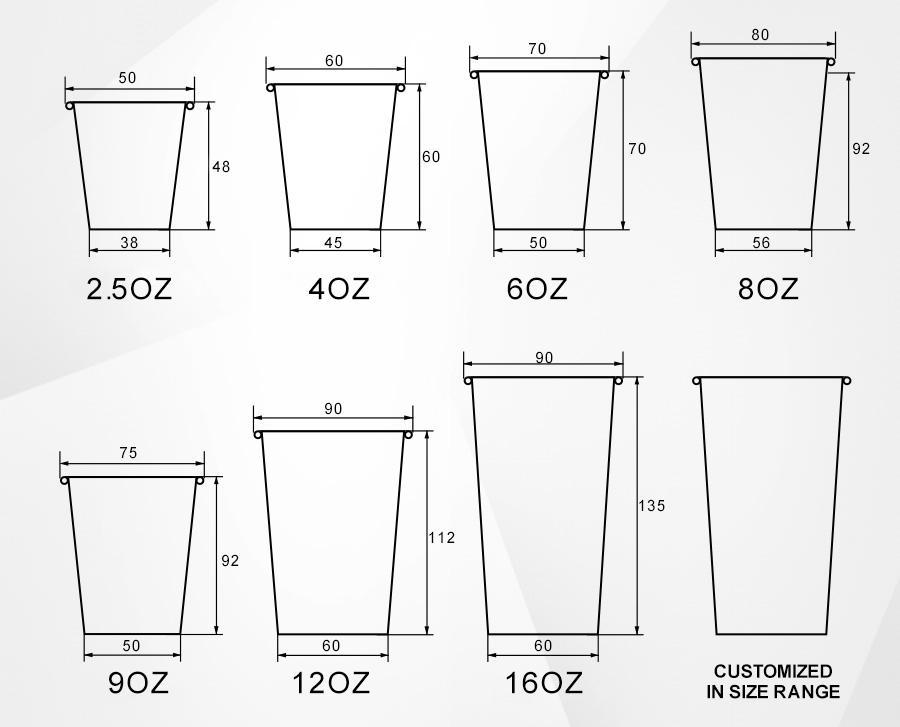

Min./Max.Size(customizable)

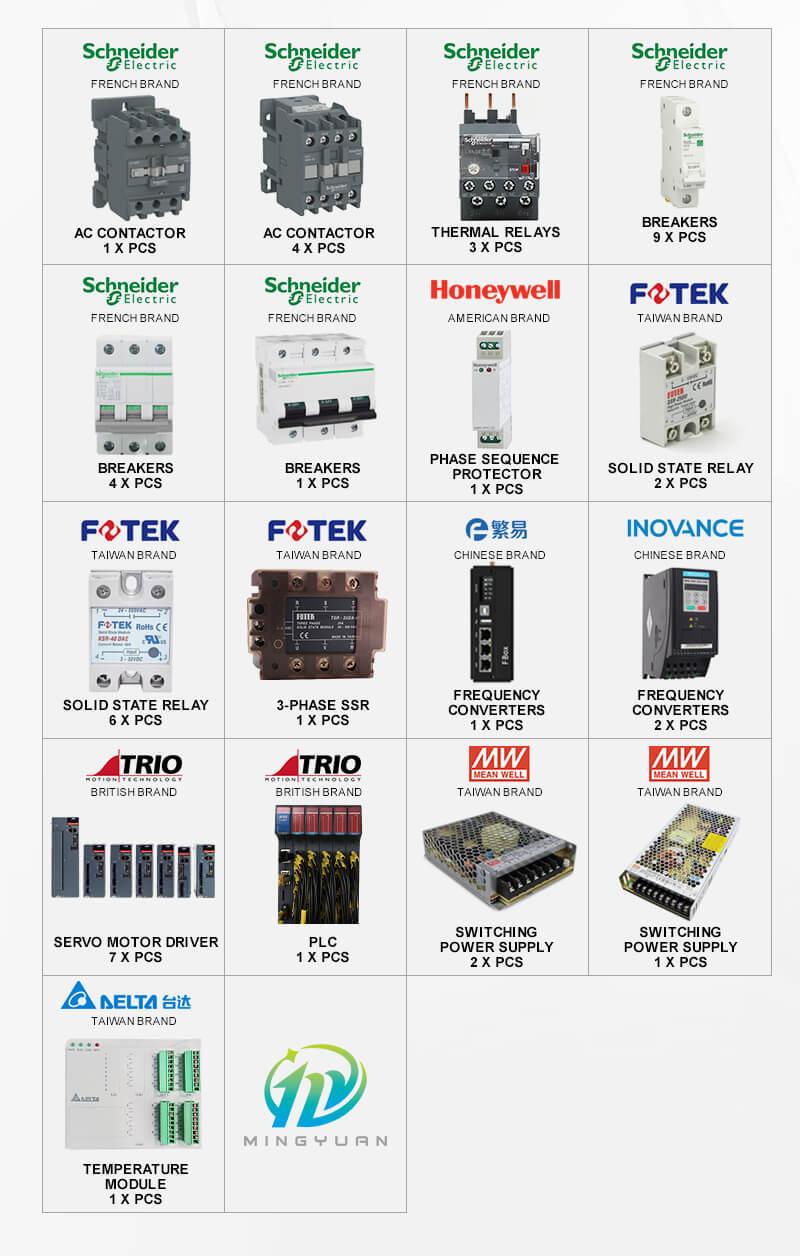

Electronic Components List

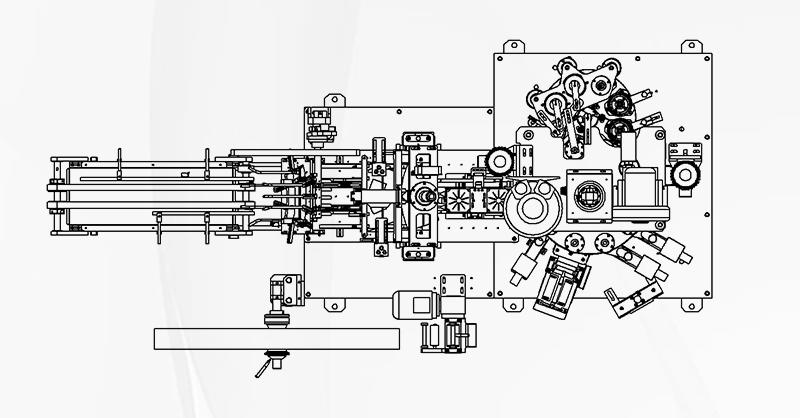

Machine Structure
MYC-160S Seven Servo Motors Paper Cup Machine |
Cup Side Welding | Ultrasonic heater |
Cup SIze |
1.5 ~ 16 oz(Mold Exchangeable, Max Cup Height:136mm, Max Bottom Width:80mm) |
Rated Speed | 140-160 pcs/min |
Raw Material |
One or Two side PE coated Paper, PLA paper, Aluminum foil, Plastic-free paper(popular for hot and cold drink cups) |
Suitable Paper Weight | 140g ~ 350g |
Total Power | 20KW(Stable Running Consumption 12KW) |
Total Weight | 3000 kgs(machine)+100 kgs(cup collection device) |
Package Size(L*W*H) | 3230*1750*2250mm |
Power Source |
50/60HZ, 380V/220V(better use 380V, 3 phase)or special power requirement |
Working Air Source |
Air Pressure:0.6Mpa Air Out-put:0.5m3/min Need to buy Air compressor(by user) |
Technical Features:
1.7pcs of sensor:It can detect the full working process of the machine like paper less, paper stuck, paper tube blocking, hot air blowing, bottom paper feeding and cup passing by errors. It will send alarm and ensure machine inside spare parts less collision issues, and run more stable.
2.Automatic Paper Fans Feeding Unit:Feeding the paper fan automatically and save labor coats.
3.Single Rotating Paper Suction Unit:Precise control of paper suction output stability, make the paper fan feeding smoothly by transferring directly into the runaway to avoid the problem of paper jam.
4.Hot Air Paper Fan Pre-heater:Hot air paper fan pre-heaters are in both side and the paper fan is pre-heater by the hot air pre-heater witch can ensure the better welding effect(no leakage issue)before ultrasonic sealing when machine is running at high speed.
5.Ultrasonic And Heater Together For The Mid Sealing:Our machine will has both ultrasonic and hot air heating for making the mid sealing of the cup.
6.Double Turnplate Design:Top rim curling and bottom sealing in separated turnplate witch can greatly improve the machine stable.
7.Integral mold head:The whole mold head with 10pcs and adopt aluminum material compare with the single plate only 8pcs bakelite separable material, the finished paper cup not easy be dirty.
8.Two Times Top Curling Unit(With Heater):We use two times rim rolling design, Rolling the rim two times and make the cup rim harder, the edge will goes inside deeper, the rim will not open easily.
9.3 PCS Bottom Hot Air Pre-heaters:1 hot air bottom paper folding heater, and 2 pcs bottom hot air pre-heaters can ensure bottom sealing no leakage issue in high speed.
10.Bottom Waste Conveyor:Bottom paper will be transferred by the conveyor and go outess bottom waste paper stucking issues.
The whole machine adopts oil lubrication and circulation system, Open cam drive and full gear drive system, which make it more accurate and stable....
Min./Max.Size(customizable) Electronic Components List Machine Structure...
MYC-OCM12 simplemodel papercup machine can do 1.5-16oz size.sped can reach 80-00PcsMN.The oilubication and circulaton svstem can make the machinerun more smothiy and extend thelife othe...
