Technical Features 1

lt adopts PLC controller and touch screen (man -machine interface all the working parameters can be setup on the control panel which is convenient for parameter setting and adjusting.(easy operate)

Technical Features 2

Servo Motor Gluing Unit：Spray the glue to the sleeve for sticking the single wall cups. it is controlled by servo motor , more accurate and stable

< >

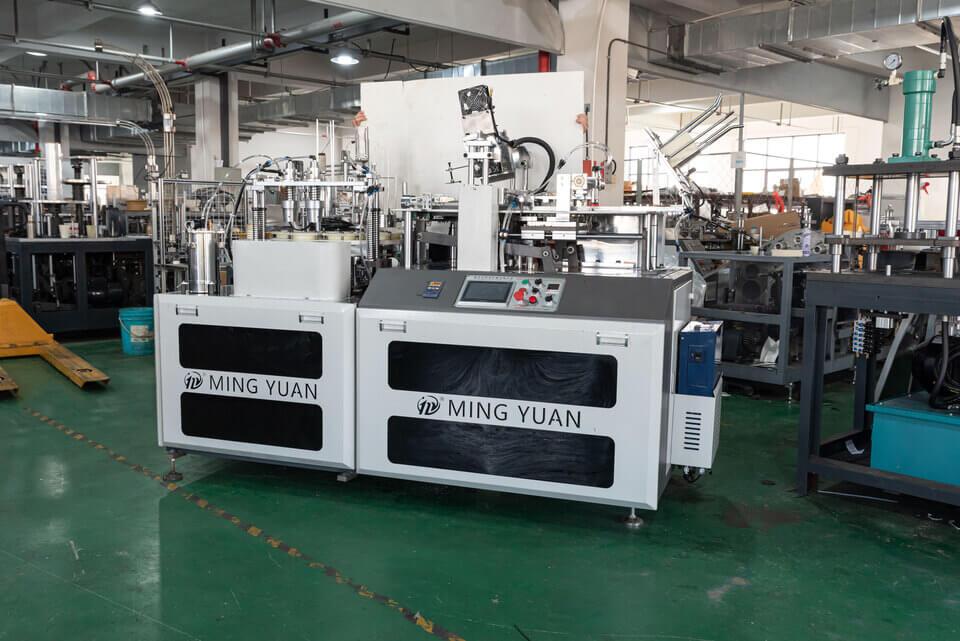

MYC-D Automatic Simple intelligent Double Wall paper cup machine

Name: MYC-D Automatic Simple intelligent Double Wall paper cup machine
Brand: MINGYUAN
Rating: 4.8 (9 reviews)

Price: Negotiable
Model: MYC-D
Rated Speed: 50-60 pcs/min
Paper Cup Size: 4-16oz
Raw Material: PE coated paper,Gloss printed paper (gray based paper with gloss printing)other film coated paper (can be welded by ultrasonic)
Cup Side Welding:
Power/voltage: 50/60HZ,380V/220V ( better use 380V, 3 Phase ) or special Power requirement
Machine Size: 2650 x 1140 x 2000 mm
Total Weight: 2300kg
Suitable Paper Weight: 140-350gsm
Certification: CE, ISO,SGS
Place of Origin: CHINA.

Get Quote

+86-19057361870

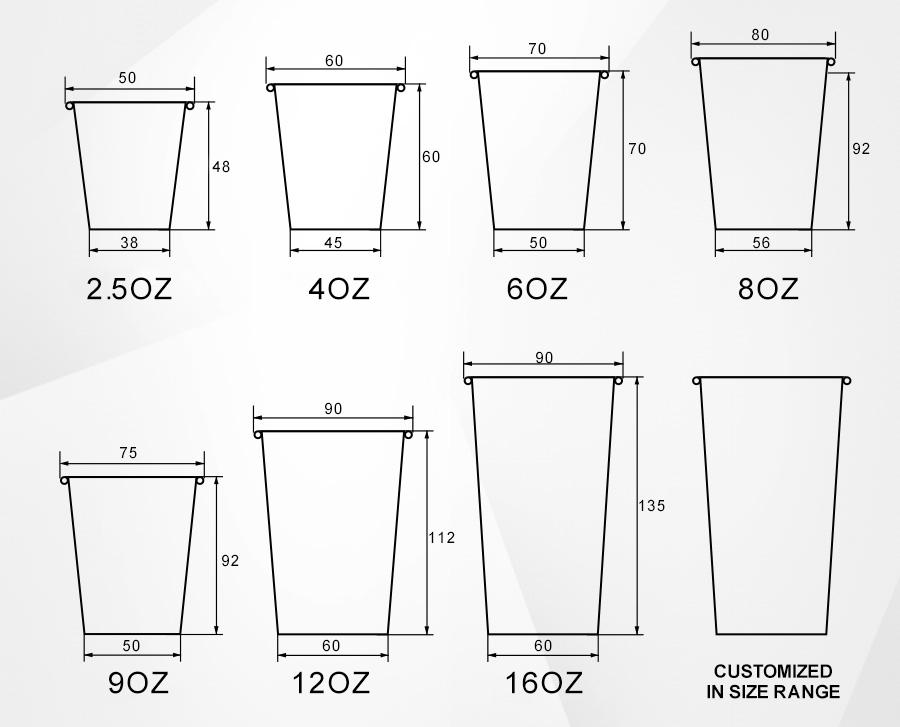

Min. /Max. Size

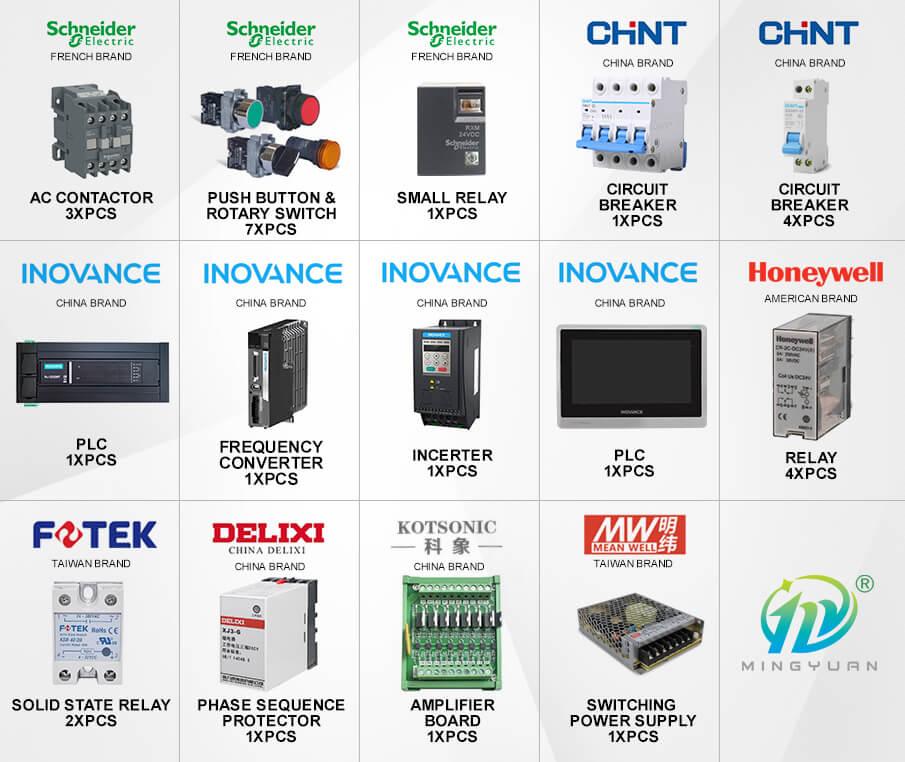

Electric Components List

MYC-D .jpg

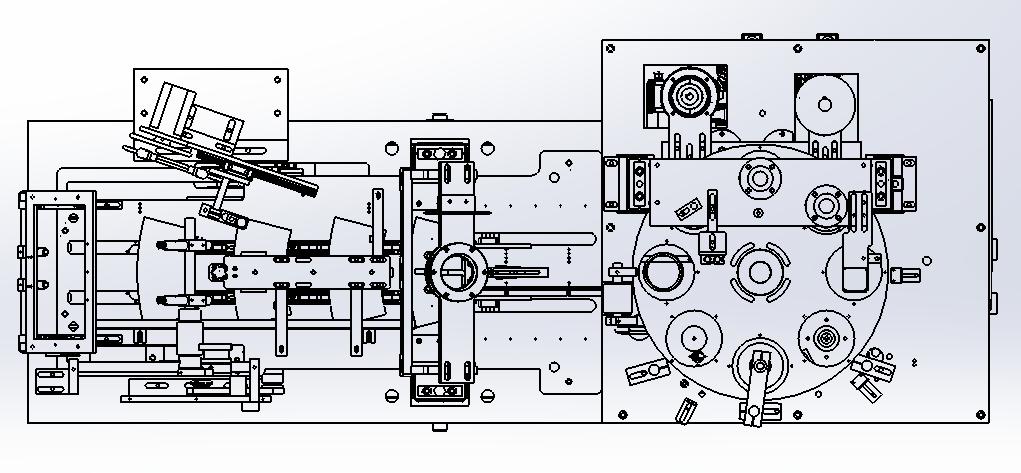

Machine Structure

MYC-D TZ.JPG

MYC-D Automatic Simple intelligent Double Wall paper cup machine

Paper Cup Size	4-16OZ Cup (mold exchangeable)
Raw Material	PE coated paper,Gloss printed paper (gray based paper with gloss printing)other film coated paper (can be welded by ultrasonic)
Speed	50-60 pcs/min
Power supply	50/60HZ,380V/220V ( better use 380V, 3 Phase ) or special Power requirement
General Power	4KW
Air source	Air pressure:0.3Mpa; Air Out-put:0.6m*/minute Need to buy Air Compressor
Gross Weight	2300kg
Packing Dimensions	2650 x 1140 x 2000 mm

Technical Features:

1.Control Panel：lt adopts PLC controller and touch screen (man -machine interfaceallthe working parameters can be setup on the control panel whichisconvenient for parameter setting and adjusting.(easy operate)

2.Electric System：High-quality brand electrical systems, such as the famous French brand "Schneider", have better quality and longer service life
3.Copper Heater：It adopts copper heater to seal the paper sleeve it is durable and longer service life
4.Sensors：Failure detecting Sensor and it stops working automatically if the machine has any problem, it can greatly improve operation safety
5.Glue Container：Water based glue is stored in this container
6.Servo Motor Gluing Unit：Spray the glue to the sleeve for sticking the single wall cups. it is controlled by servo motor , more accurate and stable
7.Reverse Paper Suction Unit：lt can suck down different paper materials like the normal and ripple corrugated paper fan easily
8.Robot Hand：lt can put the sleeve into the mould more accurately and less cupsleeve turn over issues
9.Vacuum Generator Suction Unit：The function of the vacuum generator is to absorb paper fan more stably

Related Products

More》

Related Applications

More》

Related Resource

Paper Cup Machine Double Wall paper cup machine

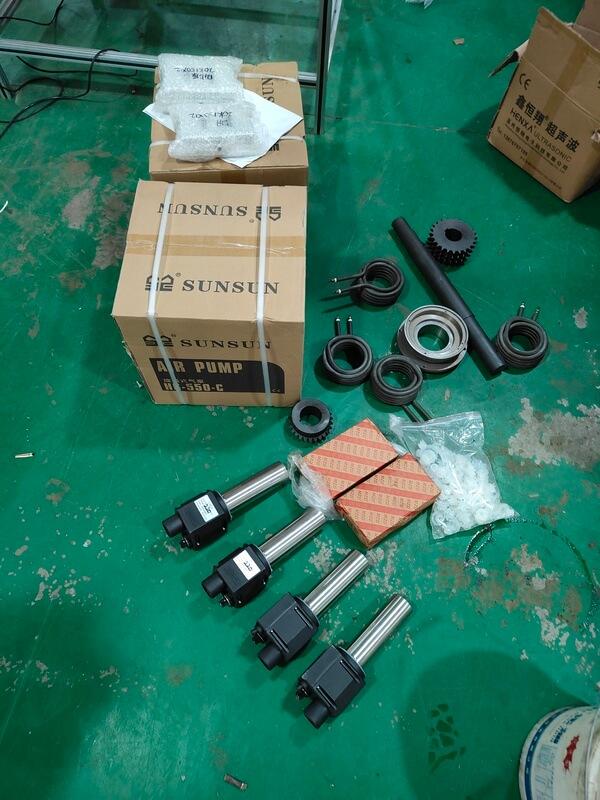

Related Main Features Mingyuan offers a full range of spare parts for a wide range of MYC-D Automatic Simple intelligent Double Wall paper cup machine.
They all meet the highest standards of quality.

Control Panel（MYC-D)→
Electric System（MYC-D）→
Copper Heater→
Sensors（MYC-D)→

Related Certification

Customer Reviews

5 / 5

Write a Review

Score

Remove

Review Title Title exceeds limit The title can not be blank

Review Text Please enter 1 ~ 3000 characters the content can not be blank

I am very satisfied with the paper cup sleeve making machine

Jayden 2024-06-03

The automation capabilities of this machine have significantly reduced the need for manual labor, saving us costs in the long run.

Ethen is very professional.

2024-05-22

I'm a novice, but Ethen was very professional and patient in teaching me how to make cup sleeve machines and paper cup machine chain machines. I think it's great.

Advanced coffee cup sleeve making machine

Anthony 2024-05-30

The durability of this paper cup machine is exceptional. It's built to last and withstand heavy usage.

The Double Wall Paper Cup Machine enhances thermal insulation

Ethan 2024-05-25

Its versatile functionality accommodates various cup sizes and designs, offering flexibility to meet diverse customer needs.

It can finish full processes such as paper fan feeding, sleeve side sealing, sleeve transferring , robot hand feeding sleeve, automatic oil circulation, Ultrasonic system，Stepping motor glue feeding, two-times cylinder pressing , and cup stacking .
