MY-520 Roll Die Cutting Machine

Name: MY-520 Roll Die Cutting Machine
Brand: MINGYUAN

Price: Negotiable
Model: MY-520
Max Cutting Area: 520mm* 360mm
Production Capacity: 200-300 times /min
Paper Gram Weight: 120-400GSM
Max Cutting Pressure:
Max Roller Diameter: 1200mm
Certification: CE, ISO, SGS
Place of Origin: CHINA.

Get Quote

+86-19057361870

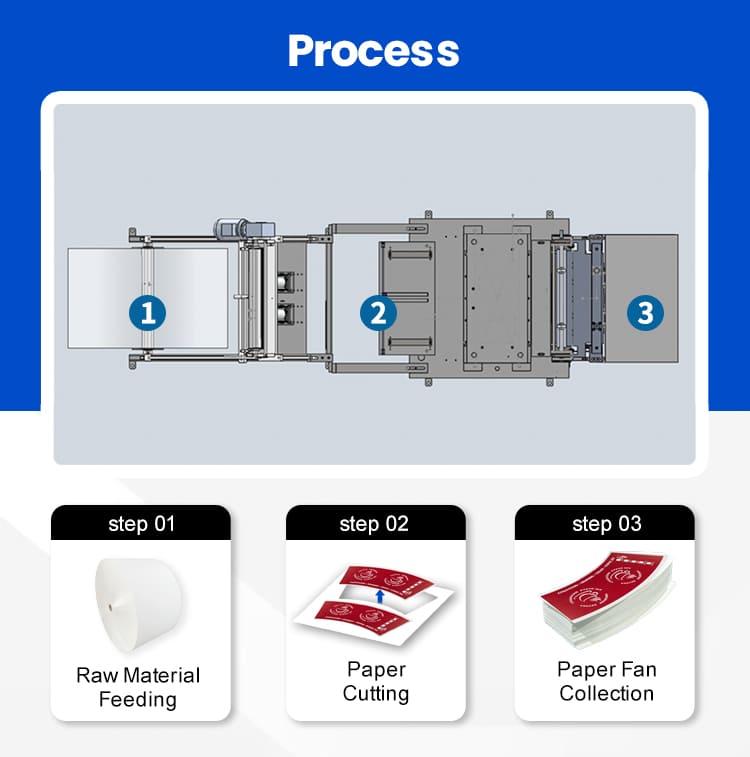

1. Raw material feeding
2. Fan cutting
3. Fan collection and waste removal

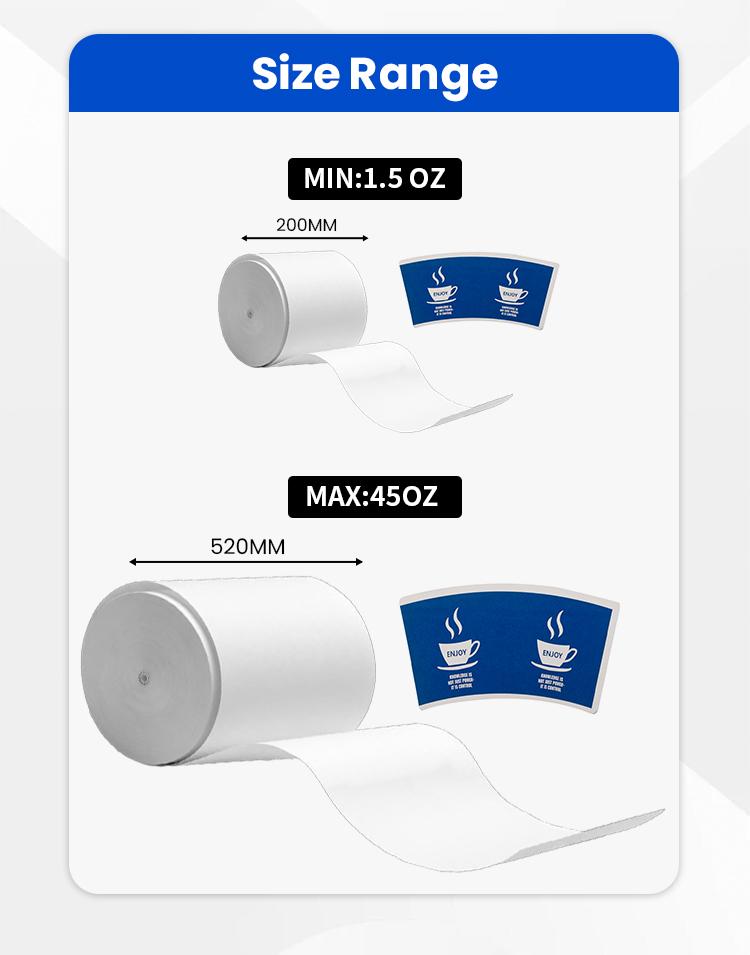

Maximum raw material width: 520 mm
Maximum paper fan size: 45 oz

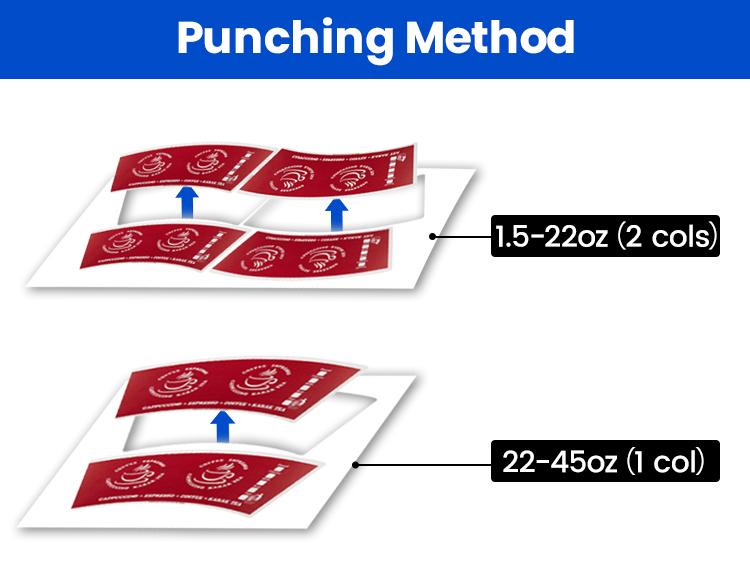

Smaller paper fans can double production

Model	MY-520
Rated Cutting Speed	200-300 times/min
Material	PE/PLA coated white carboard / Kraft Paper
Paper Cup Size Range	1.5-45 oz
Gross Weight	1500 KG
Suitable Paper Weight	120-400 gsm
Overall Dimensions	3790mm * 1000mm * 1270mm

Automatic Waste Removal: Improve production efficiency and reduce labor costs.

Automatic Collecting: Customizable number of sheets to collect.

Paper Cutting: Precision processing, more precise molding.

Related Products

More》

MY-520 Roll Die Cutting Machine

Related Resource

MY-520 Roll Die Cutting MachineMain Features

1. Control Panel

lt is installed with PLC control system and touch screen , all parameterscan be set on the control panel, easy to operate. With auto failuredetection sensor , error information will be shown easily and that fortroubleshooting and maintaining

2. Gluing &Pasting Servo Motor

The white glue will be sprayed by the motor to stick the sleeve andthe single wall.(Rotary glue spraying)

3. Oil Lubrication And Circulation（DW100)

Oil lubrication system (Oil Pump Motor, The whole machine isequipped with automatic lubrication system which makes allmechanical parts working much more smoothly, longer serviceMACGINERYlife and less troubles.

Related Quality Control APPLY WORLD-CLASS COMPONENTS, STRICTLY TESTED & CERTIFIED.
TO ENSURE RELIABILITY.

100⁺

SOLUTIONS

80⁺

PATENTS

60⁺

COUNTRIES USERS

20000⁺

SQUARE METERS

200⁺

EMPLOYEES

1000⁺

GLOBAL CLIENTS

Customer Feedback

Customer feedback should be regularly solicited and used to improve product quality and address any issues or concerns.

Assembly process inspection

In the assembly process of MY-520 Roll Die Cutting Machine, the key links are inspected to prevent assembly errors and defects.

Preassembly inspection

Before the assembly of the MY-520 Roll Die Cutting Machine, all components are inspected to ensure the acceptance rate and assembly quality of the parts.
