MYC-W35 Automatic Paper Bowl Forming Machine

Price: Negotiable
Model: MYC-W35
Bowl Size: 6-35OZ
Rated Speed: 70-80 pcs/min
Raw Materials: Single/Double PE coated paper
Suitable paper weight: 140-350gsm
Power Source: 380V 50hz
Certification: CE, ISO,SGS

Get Quote
Technical Features 1
Power Systems:Quality Brand electric System like Delta, Schneider.PLC control system be with Schneider Brand Made in France with Reliable quality
Technical Features 2
Control Panel:lt adopts PLC controller and touch screen (man -machine interface)all the working parameters can be setup on the control panel whichis convenient for parameter setting and adjusting.(easy operate)

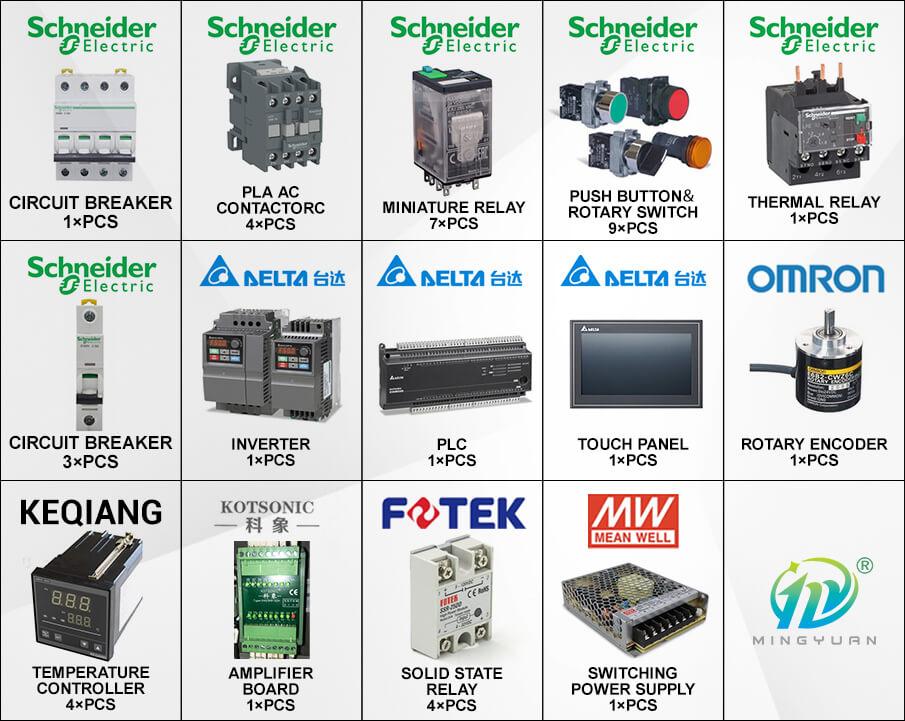

Electric Components List

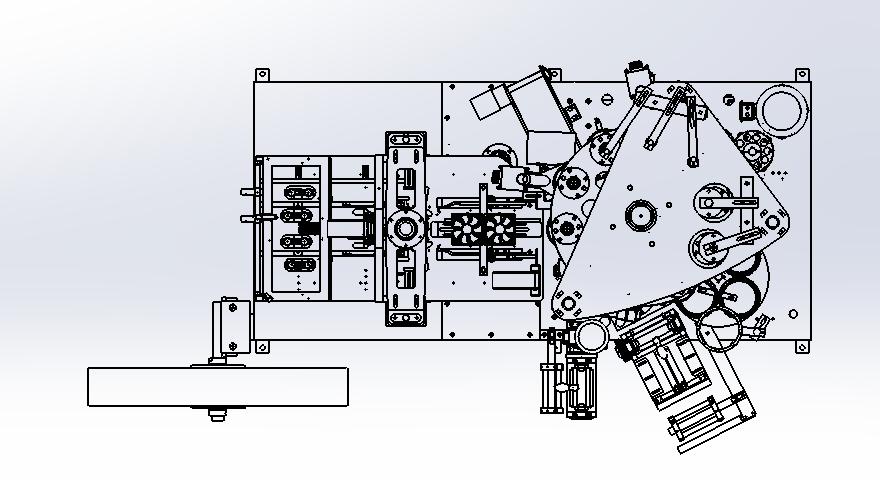

Machine Structure


MYC-W35 (2).JPG

MYC-W35 Automatic Paper Bowl Forming Machine

Cup Side Welding

Ultrasonic heaterw

Rated Speed

70-80 pcs/min

Paper Cup Size

6-35OZ

Raw Material

Single/Double PE coated paper

Suitable paper weight

140-350gsm

Power Source

380V  50hz

Total Power

6KW

Total Weight

1980KG

Pack Size(L*W*H)

2350 x1250 x1900MM

Air Pressure Requirements

0.6Mpa,output :0.6 m3/minute

Cup Bottom Heating

1side PE paper by heater knurling;2side PE paper by cool device (circlewater) knurling

Cup Bottom Knurling

Heater Knurling (if use single PE coated paper)




Technical Features:


1.Power Systems:Quality Brand electric System like Delta, Schneider.PLC control system be with Schneider Brand Made in France with Reliable quality


2.Control Panel:lt adopts PLC controller and touch screen (man -machine interface)all the working parameters can be setup on the control panel whichis convenient for parameter setting and adjusting.(easy operate)

3.Safety Cover:Protection during the operation of the machine

4.Servo Motor:The bottom paper feeding is controlled by servo motor and stepping motor, which greatly improve paper feeding in high precision and high efficiency way.(more stable ,less troubles and save bottom paper)

5.Multi-function CAM:Three cams design are used to separately control the operation of thefour spare parts which makes paper fan sealing more stable at highspeed without troubles

6.Robot Hand Collecting And Counting System:The finished bowls are picked up by the robot hand and countedautomatically, the packaging is more accurate and easier.There is no limit in size if it is used to pack multi sizes of bowls (the common counting system with tube requires the same top diameter), which greatly saves labor costs .

Related Resource


MYC-W35 Automatic Paper Bowl Forming MachineMain Features

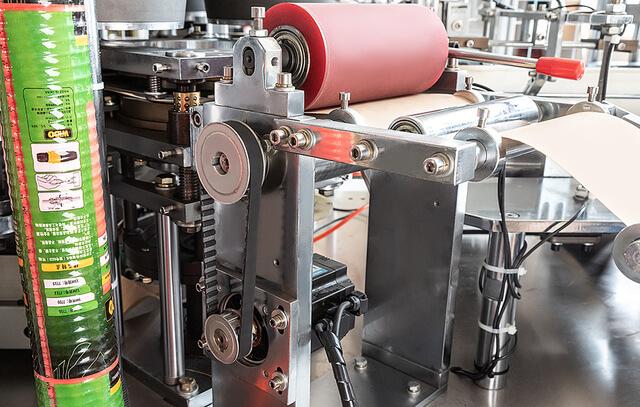

Servo Motor Paper Feeding Unit(MY-OCBUCKET)
Servo Motor Paper Feeding Unit(MY-OCBUCKET)
The bottom paper feeding is controlled by the servo motor which is more accurate and stable.
Delta-Touch-Screen
Delta-Touch-Screen
lt adopts PLC controller and touch screen (man -machine interfaceall the working parameters can be setup on the control panel whichisconvenient for parameter settingand adjusting.(easy operate)

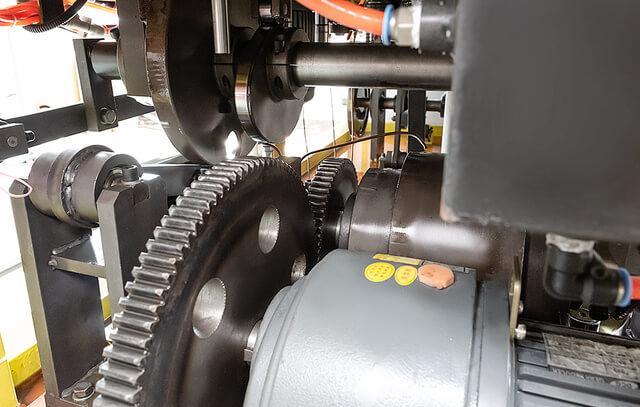

Main Motor
Main Motor
The big and strong gear is driven by the main motor better quality and more stable.

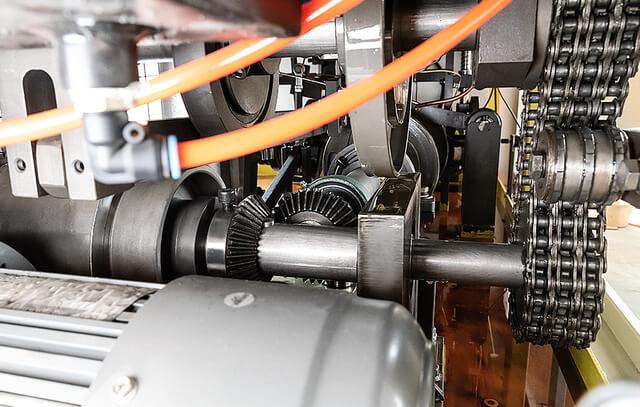

Gear-Driving-System
Gear-Driving-System
Gear transmission is more accurate, high efficiency, compactstructure, reliable work, long service life
