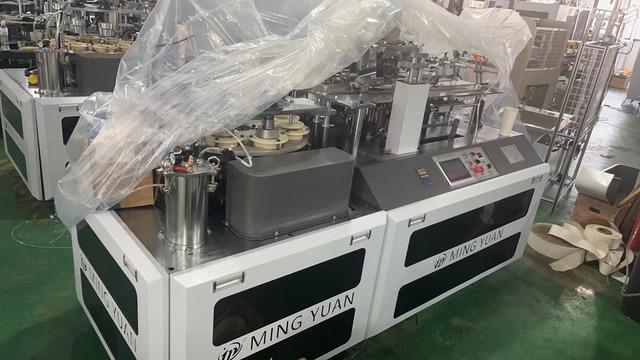

MYC-OCM12 High-Speed Intelligent Paper Cup Making Machine

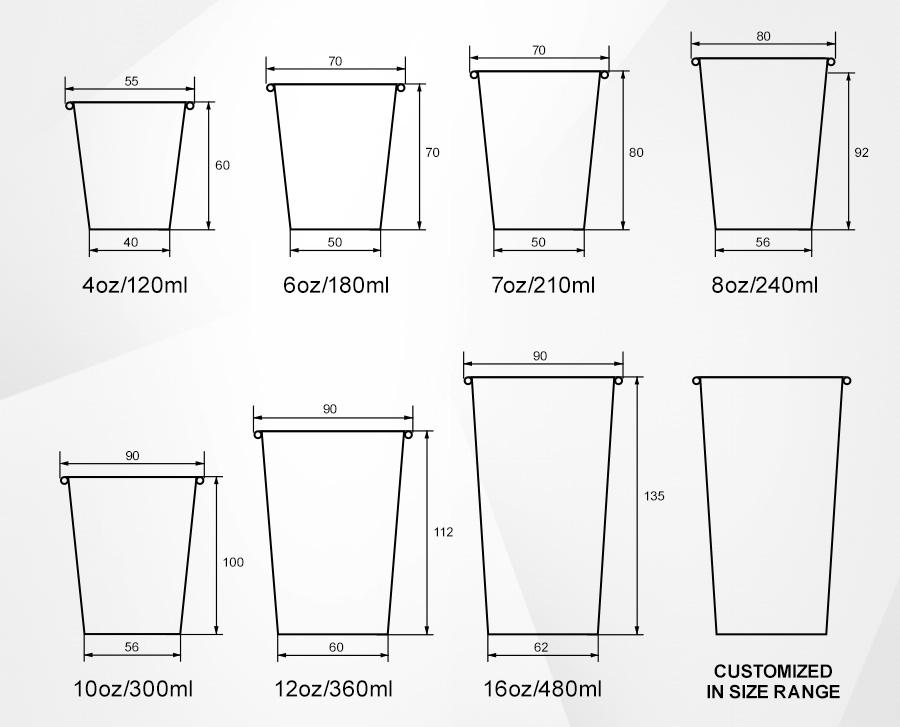

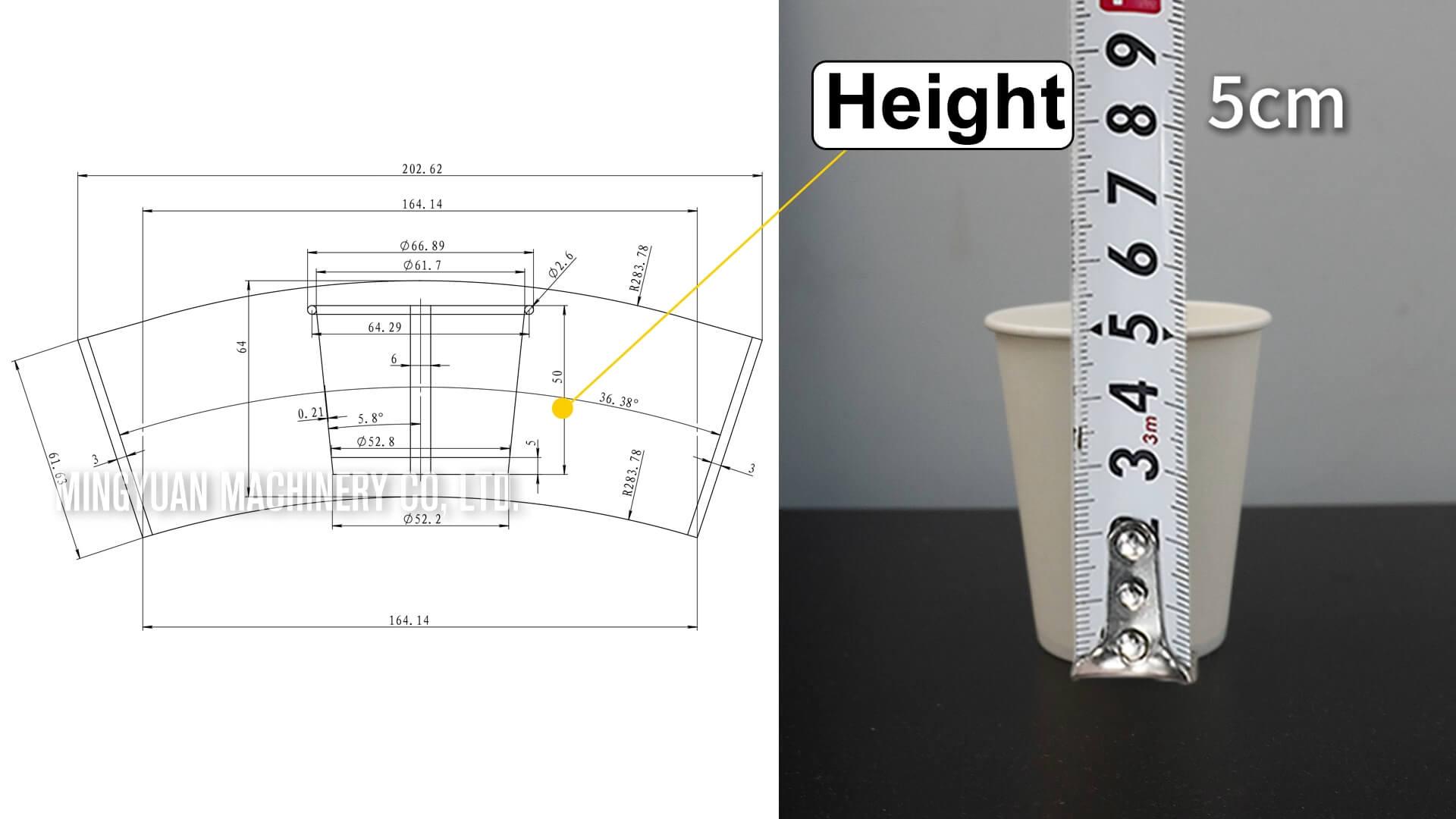

Min. /Max. Size（customizable）

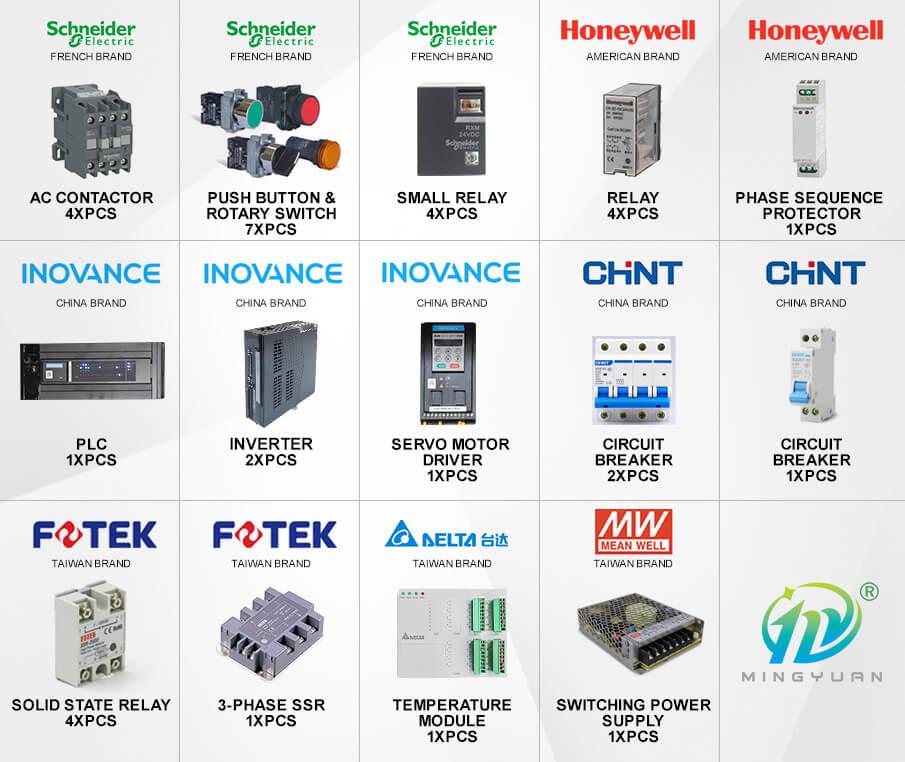

Electric Components List

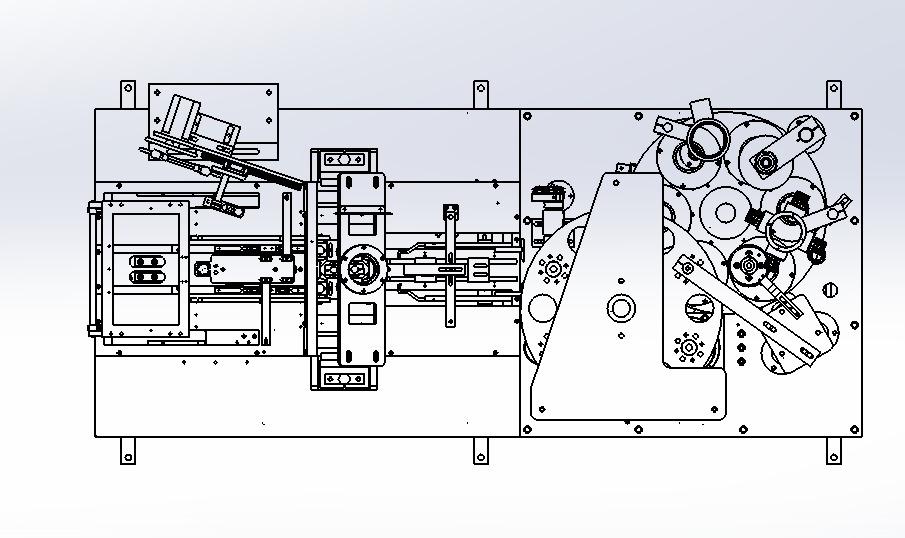

Machine Structure

Technical Features:

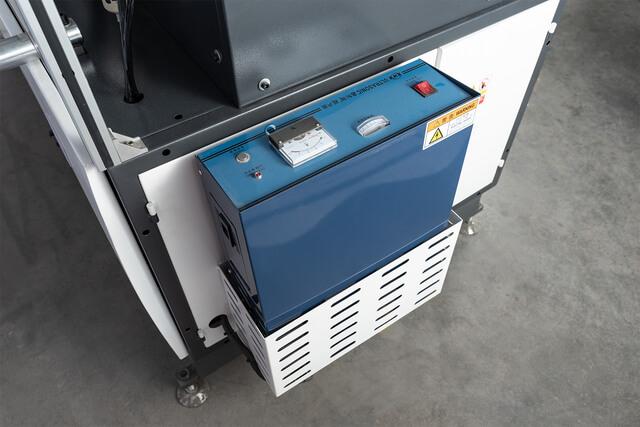

2. Voltage Regulator：If the voltage is 380v,you need to connect a voltage regulator, if it is 220v,you don't need it(above spare parts are only available in ultrasonic heater machine

3. Mould with Air Hole：It can cool the mould easily and make the cup discharge easily.

4. Cover Platen Board：Longer service life，More stable and better

5. Vacuum Suction Generator：Prevent wet air with water from entering solenoid valve,longer service  life,more stable and better.

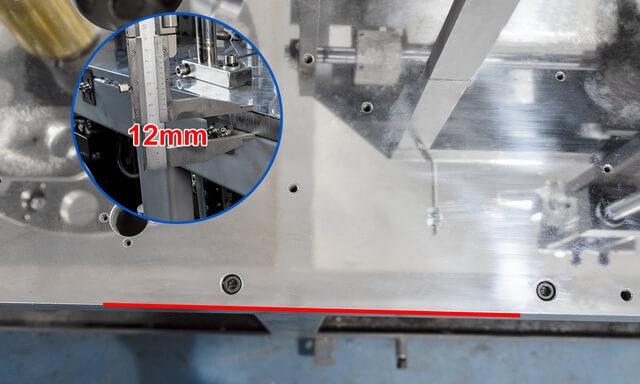

6. Metal Rod Accessories Thickness Upgrade：New design is durable better qualityis not easy to be broken inlong time running

7. Metal pipes：It is for the connection of hot air blowing  heater,durable  and high temperature resistance.

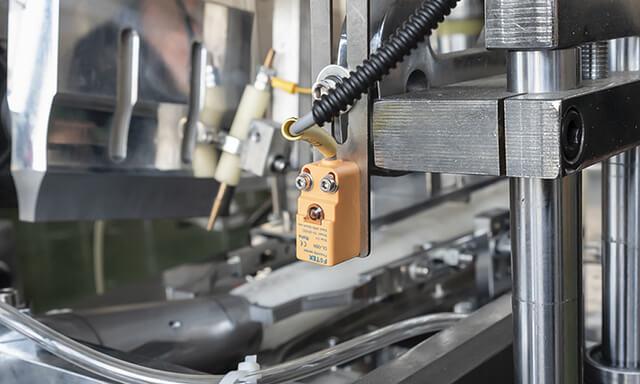

8. 12 PCS of sensor：It can detect the full working process of the machine like paper less,paper stuck,paper tube blocking,hot air blowing,bottom paper feeding and cup passing by errors.It will send alarm and ensure machine inside spare parts less collision issues,and  run more stable.

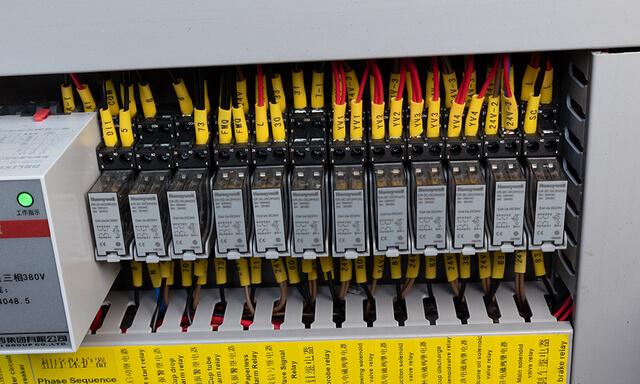

9. 12pcs Honeywell Relay：Imported American brand relay, high quality, longer service life.

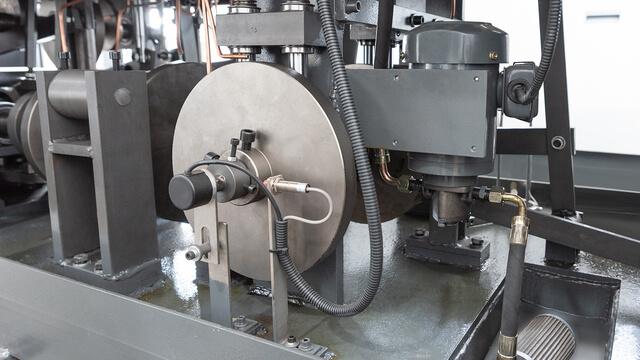

10. Oil Lubrication and Circulation：The whole machine adopts automatic oil lubrication system

(oil  circulation  system  is  including  oil  motor,filter,copper  pipe)which makes all gear moving parts working at high speed much more smoothly and greatly Improve the service life of spare parts.

11.Control Panel：It adopts PLC controller and touch screen (man -machine interface) all the working parameters can be setup on the control panel which is convenient for parameter setting and adjusting.(easy operate)
