MYC-OCM12 Simple Ultrasonic Heating Paper Cup Machine

Name: MYC-OCM12 Simple Ultrasonic Heating Paper Cup Machine
Brand: MINGYUAN
SKU: MYC-OCM12
Availability: InStock
Rating: 4.8 (15 reviews)

Price: Negotiable
Model: MYC-OCM12
Rated Speed: 80-100pcs/min
Paper Cup Size: 1.5-16oz
Raw Material: One or Two side PE coated Paper(Popular for Hot and Cold drink Cups)
Cup Side Welding: Ultrasonic heater
Power/voltage: 50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement
Machine Size: 2350*1110*2000mm(Machine size)1160*1200*2100mm(Collecting table size)
Total Weight: GW/NW:2000KG/1900KG
Suitable Paper Weight: 140-350gsm
Certification: CE, ISO,SGS
Place of Origin: CHINA.

Get Quote

+86-19057361870

Technical Features 1

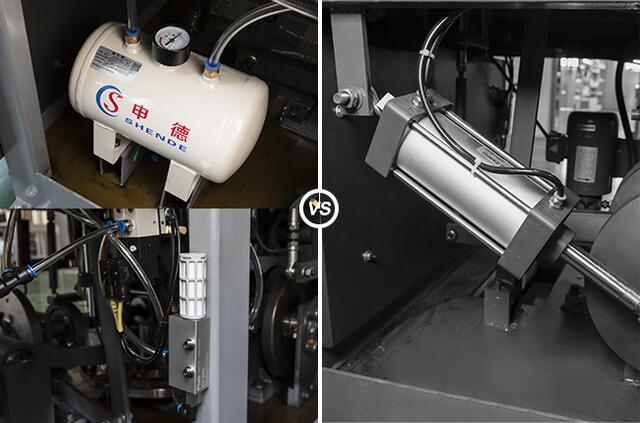

Vacuum suction cup generator: prevent moisture with water into the solenoid valve, longer service life, more stable and better.

Technical Features 2

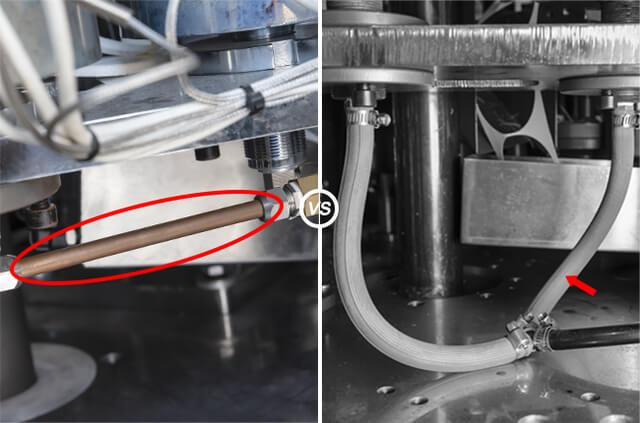

Metal Pipes：It is for the connection of hot air blowing heater , durable and high temperature resistance.

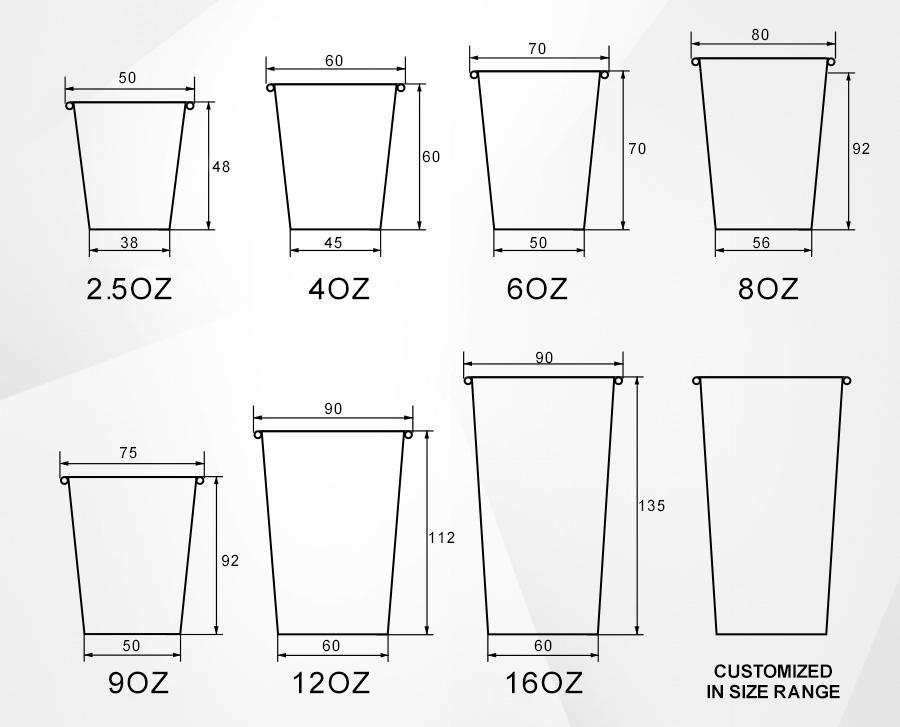

Min./Max.Size(customizable)

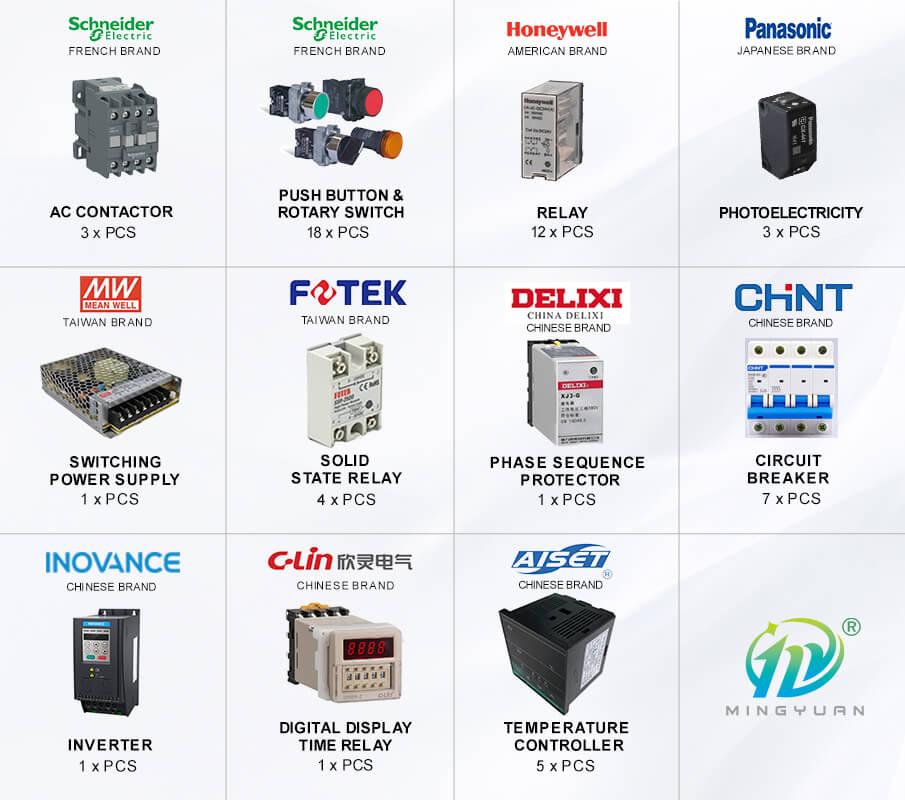

Electric Components List

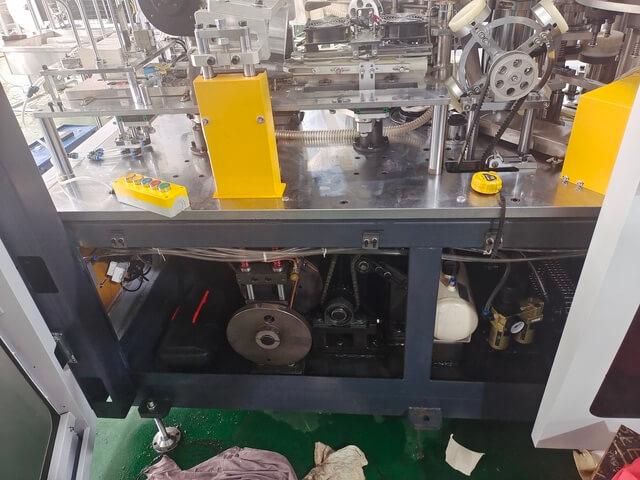

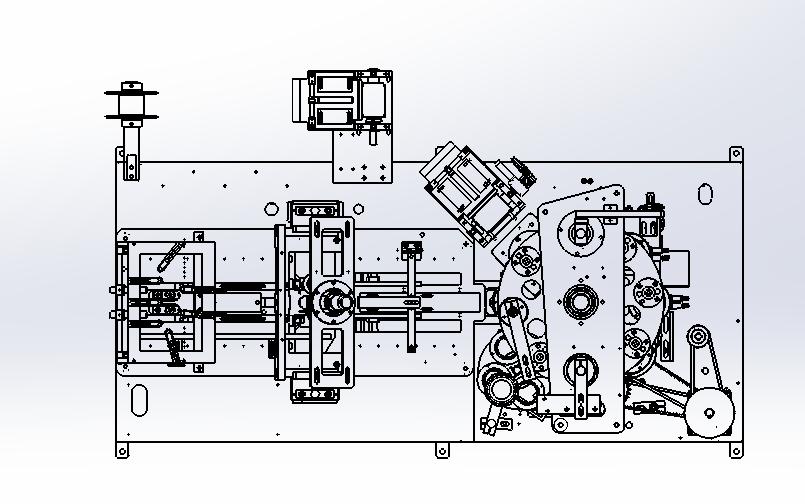

Machine Structure

MYC-OCM12 Simple ultrasonic heating paper cup machine

Cup Side Welding	Ultrasonic heater
Paper Cup Size	1.5~16 OZ (Mould exchangeable, Max Cup Height:136mm , Max Bottom width :80mm
Rated Speed	80-100pcs/min( Speed affected by cup size, paper quality & thickness)
Raw Material	One or Two side PE coated Paper(Popular for Hot and Cold drink Cups)
Suitable paper weight	140-350gsm
Power Source	50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement
Total Power	6 KW
Pack Size(LWH)	235011102000mm(Machine size)116012002100mm(Collecting table size)
Working Air Source	Air pressure:0.4Mpa;Air Output:0.6m/minute;Need to buy Air Compressor(by user)
Cup Bottom Heating	1side PE paper by heater knurling; 2side PE paper by cool device (circle water)knurling

Technical Features:

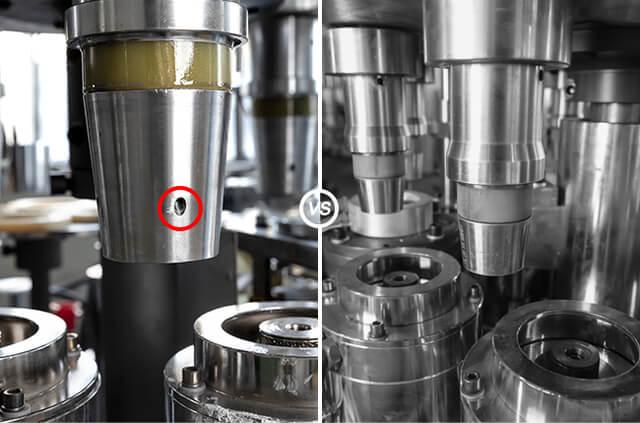

1.Mould with Air Hole: lt can cool the mould easily and make the cup discharge easily.

2.Vacuum Suction Generator: Prevent wet air with water fromentering solenoidvalve,onger service life,more stable and better.

3.Metal Rod Accessories Thickness Upgrade: New design is durable better quality is not easy to be broken into running
