Technical Features 1
Main Turn plate:The main turn plate Design is installed with ten moulds which can makes speed faster.
Technical Features 2
12 PCS honeywell relay:Best Imported US brand relay best quality and longer service life


MYC-OCM100 High Speed 1.5-9 OZ Paper Cup Making Machine

Price: Negotiable
Model: MYC-OCM100
Rated Speed: 100-120pcs/min
Paper Cup Size: 1.5oz-9oz
Raw Material: One or Two side PE coated Paper (Popular for Hot and Cold drink Cups)
Cup Side Welding: Ultrasonic heater
Power/voltage: 50/60HZ 380V220V ( better use 380V,3 Phase ) or special Power requirement
Machine Size: 2350*1110*2000mm(Machinesize) 1160*1200*2100mm(Collecting tablesize)
Total Weight: 2000KG
Suitable Paper Weight: 140-350gsm
Certification: CE, ISO,SGS
Place of Origin: CHINA.

Get Quote

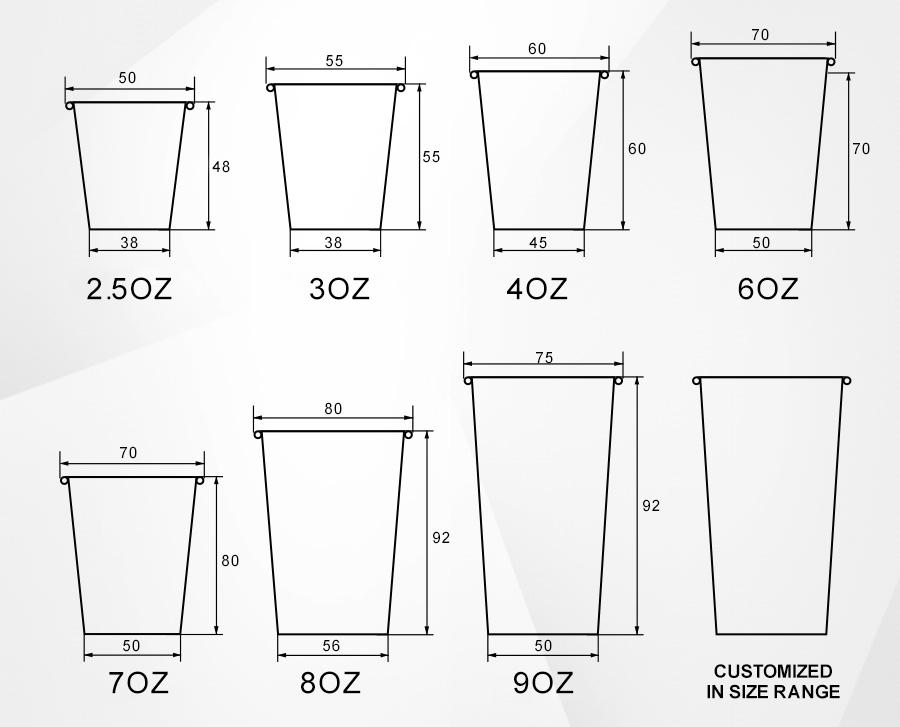

Min. /Max. Size

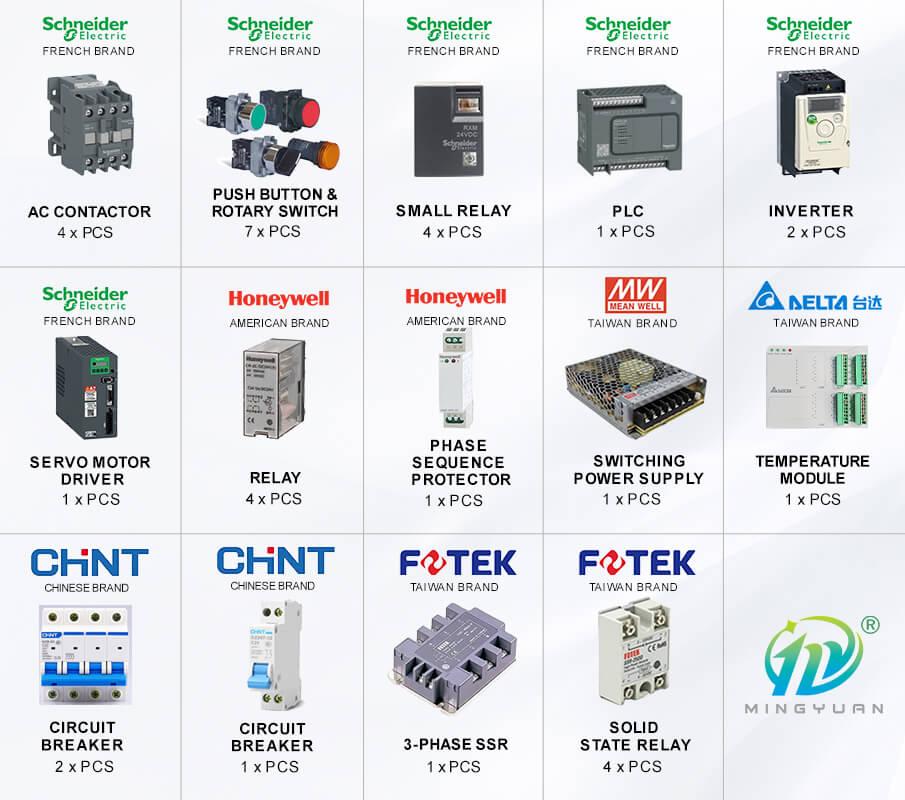

Electric Components List


OCM100ELECTRIC (2).jpg

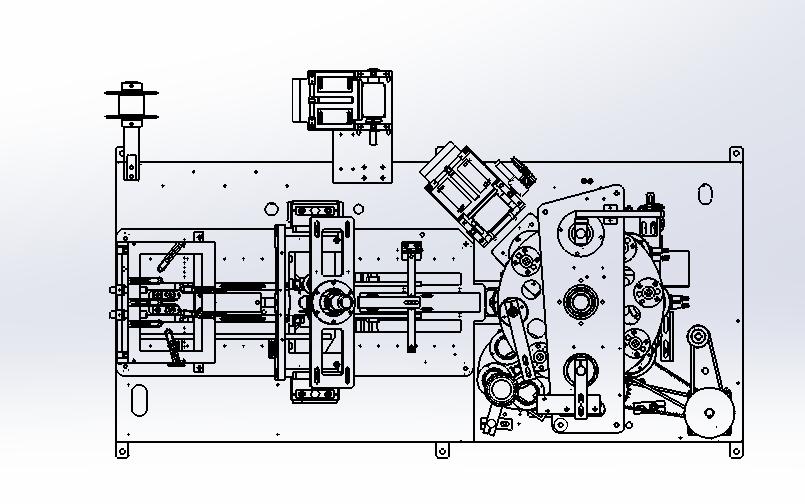

Machine Structure

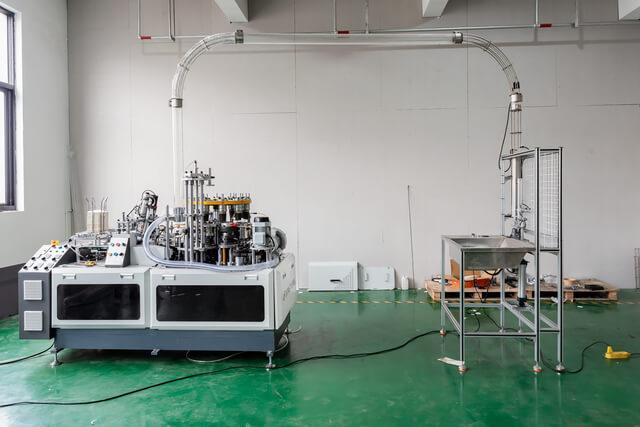

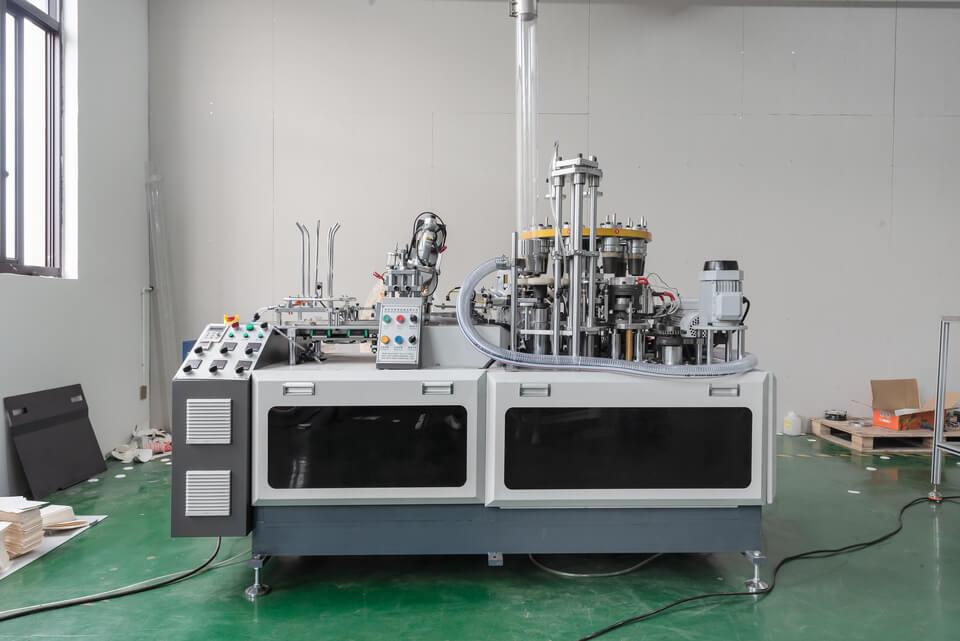

MYC-OCM100 High Speed Simple Model Paper Cup Machine

Cup Side Welding

Ultrasonic heater

Paper Cup Size

1.5~ 9 0Z (Mould exchangeable, Max Cup Height:95mm,Max Bottom width:65mm)

Rated Speed

100-120pcs/min ( Speed affected by cup size, paper quality &thickness)90Z280GSM paper cup Stable running speed 115 pcs each min

Raw Material

One or Two side PE coated Paper (Popular for Hot and Cold drink Cups)

Suitable paper weight

140-350gsm

Power Source

50/60HZ 380V220V ( better use 380V,3 Phase ) or special Power requirement

Total Power

6KW

Pack Size(L*W*H)

2350*1110*2000mm(Machinesize)

1160*1200*2100mm(Collecting tablesize)

Working AirSource

Air pressure:0.4Mpa

Air Out-put0.6m/minute

Need to buy Air Compressor(by user)

Cup Bottom Heating

1side PE paper by heater knurling;

2side PE paper by cool device (circle water)knurling.

Cup Bottom Knurling

Heater Knurling (lf use single PE coated paper)



Technical Features:

1.Main Turn plate:The main turn plate Design is installed with ten moulds which can makes speed faster.

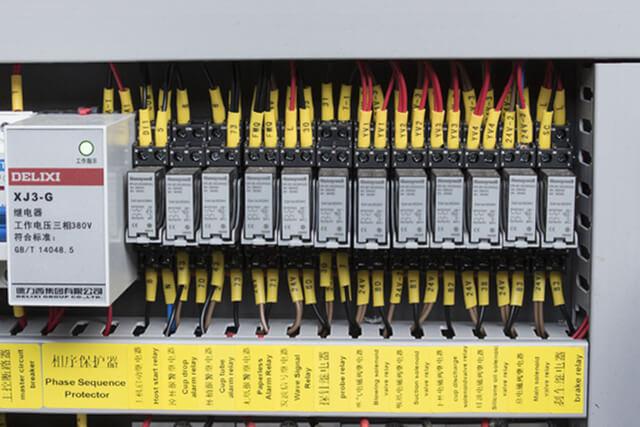

2.12 PCS honeywell relay:Best Imported US brand relay best quality and longer service life

3.12 PCS of sensor:It can detect the full working process of the machinelike paper less ,paper stuck,paper tube blocking,hot air blowing,bottom paper feeding and cup passing by errors.lt will send alarm and ensure machine inside spare parts less collision issues,and run more stable.

4.Vaccum Suction Generator:Prevent wet air with water from entering solenoid valve,longer service life,more stable and better.

5.Full Gear Driving System:Main mechanism and moving parts are controlled by stronger and durable gears which is more efficient and more stronger than chain and axis.(support stable running speed110-120 pcs/min,longer service life less troubles and lower noise )

6.Oil Lubrication and CirculationThe whole machine adopts automatic oil lubrcation system( oill circulation system is including oil motor, filter, copper pipe )which makes all gear moving parts working at high speed much more smoothly and greatly improve the service life of spare parts


Related Resource


Related Applications Paper Cup Making Machine Market Leader!
Your Professional MYC-OCM100 High Speed 1.5-9 OZ Paper Cup Making Machine Supplier in China.
Contact Us
MYC-OCM100 High Speed 1.5-9 OZ Paper Cup Making MachineMain Features

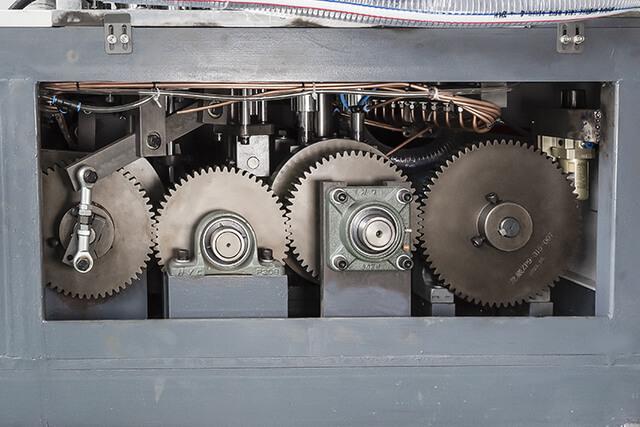

Full Gear Driving System
Full Gear Driving System
Main mechanism and moving parts are controlled by stronger and durable gears which is more efficient and more stronger than chain and axis.(support stable running speed110-120 pcs/min,longer service life less troubles and lower noise )
12 PCS honeywell relay(OCM100)
12 PCS honeywell relay(OCM100)
Best Imported US brand relay best quality and longer service life

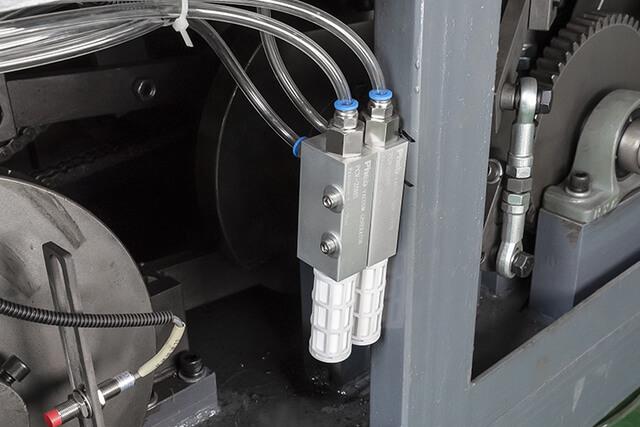

4.Vaccum Suction Generator
4.Vaccum Suction Generator
Prevent wet air with water from entering solenoid valve,longer service life,more stable and better.

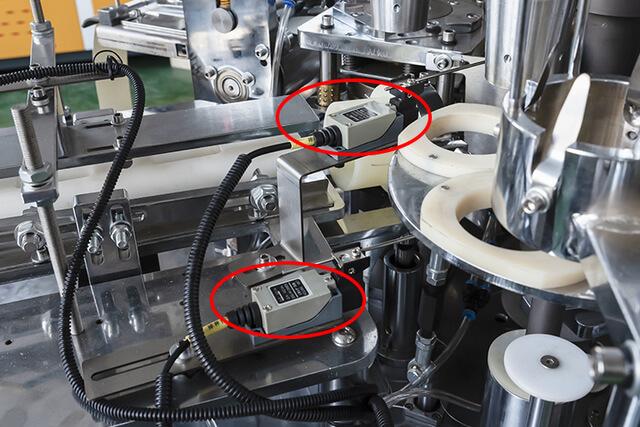

12 PCS of sensor(OCM100)
12 PCS of sensor(OCM100)
It can detect the full working process of the machinelike paper less ,paper stuck,paper tube
