Paper Cup Production Process: From Raw Paper to Finished Cups

1. Introduction

A paper cup machine is widely used in the disposable packaging industry to convert paper into various types of paper cups.

For beginners entering this industry, it is very important to understand:

 - The complete production process from raw materials to finished cups

Many beginners mistakenly believe that one machine can complete all production steps.

In reality, paper cup production involves multiple processes that must work together.

In this article, you will clearly learn:

 - How each step affects product quality

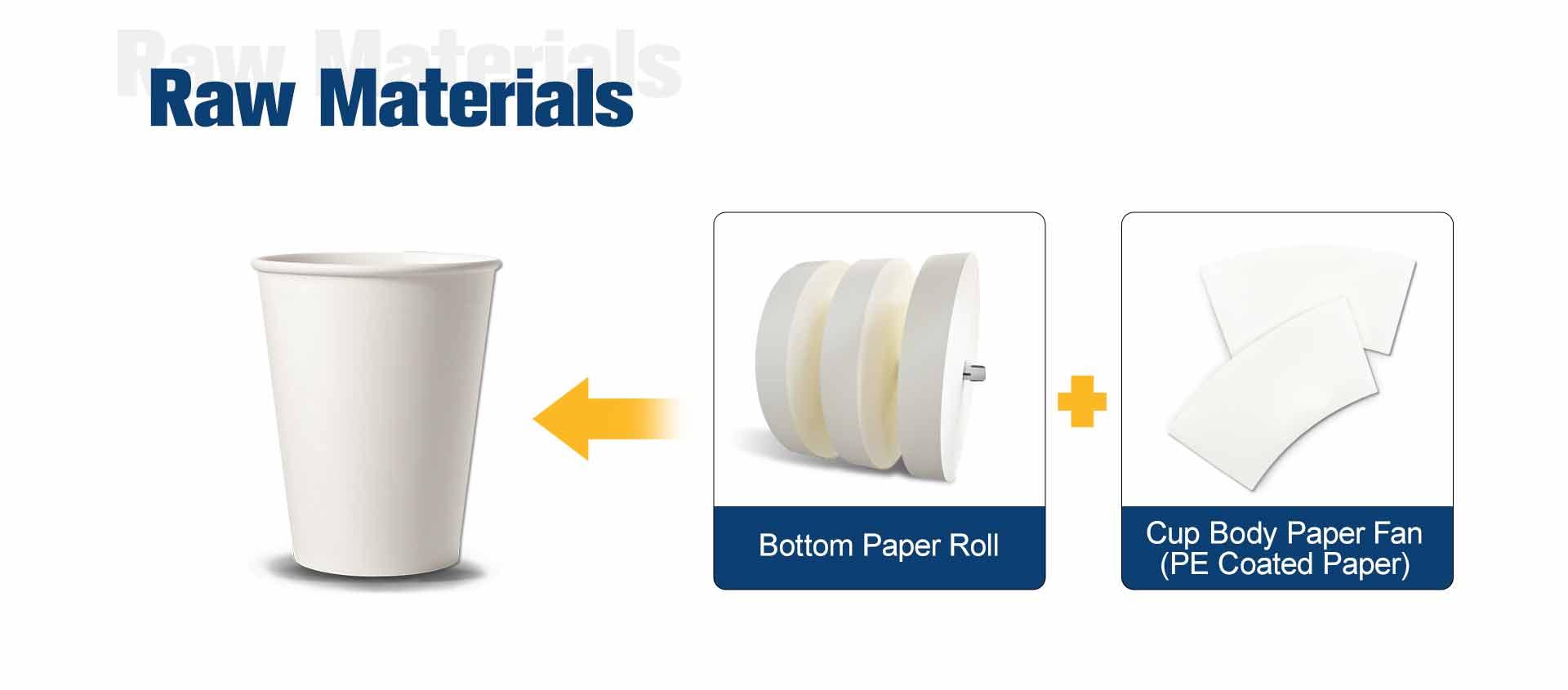

2. What Raw Materials Are Needed for Paper Cup Production

Before production, the following materials are required:

 - Cup body paper fan (PE coated paper)

 - Bottom paper roll

Explanation:

 - The cup body material is pre-cut fan-shaped paper

 - The bottom paper is in roll form and does not need pre-cutting

3. What Machines Are Needed in a Paper Cup Production Line

A typical production line includes:

1. Printing Machine

Used to print logos and designs on paper

2. Die Cutting Machine

Used to cut paper into fan-shaped pieces

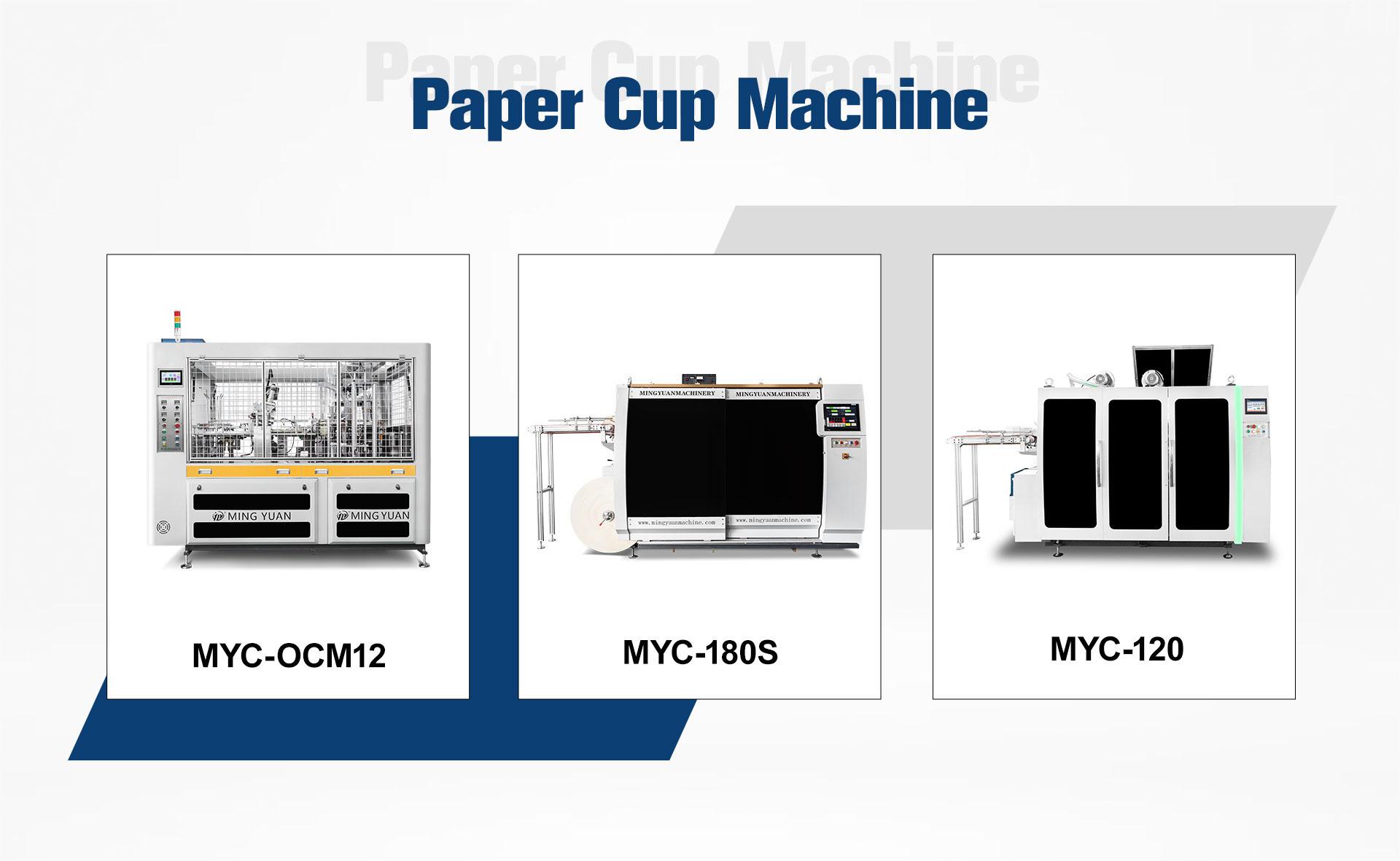

3. Paper Cup Machine

Also called:

 - paper cup machine

 - paper cup forming machine

Used for forming the paper cup

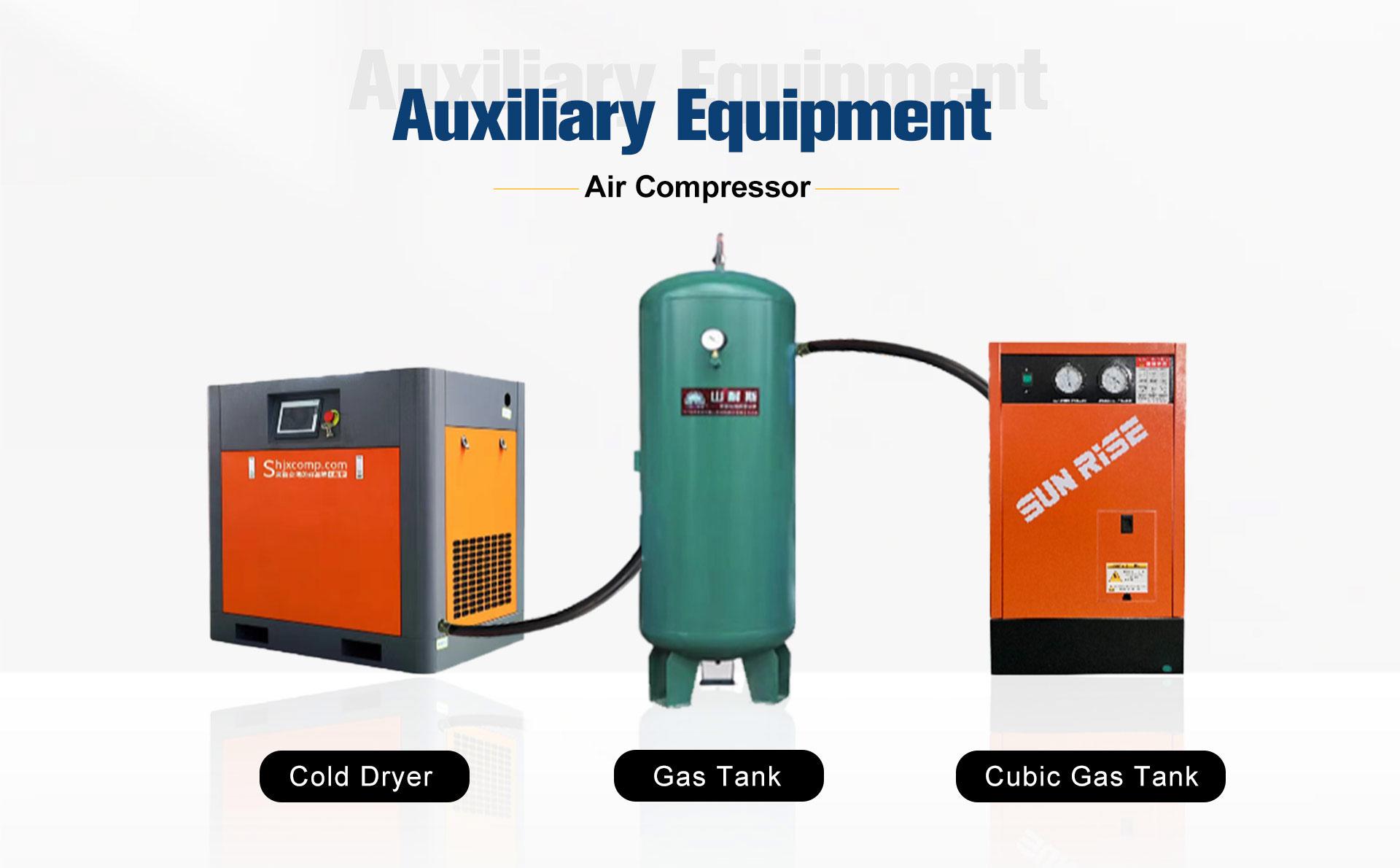

4. Air Compressor

Provides air supply for the machine

This is essential for machine operation

Important Note:

A paper cup machine only performs forming

It does NOT include:

 - Printing

 - Die cutting

Beginner Tip:

You can simplify production by:

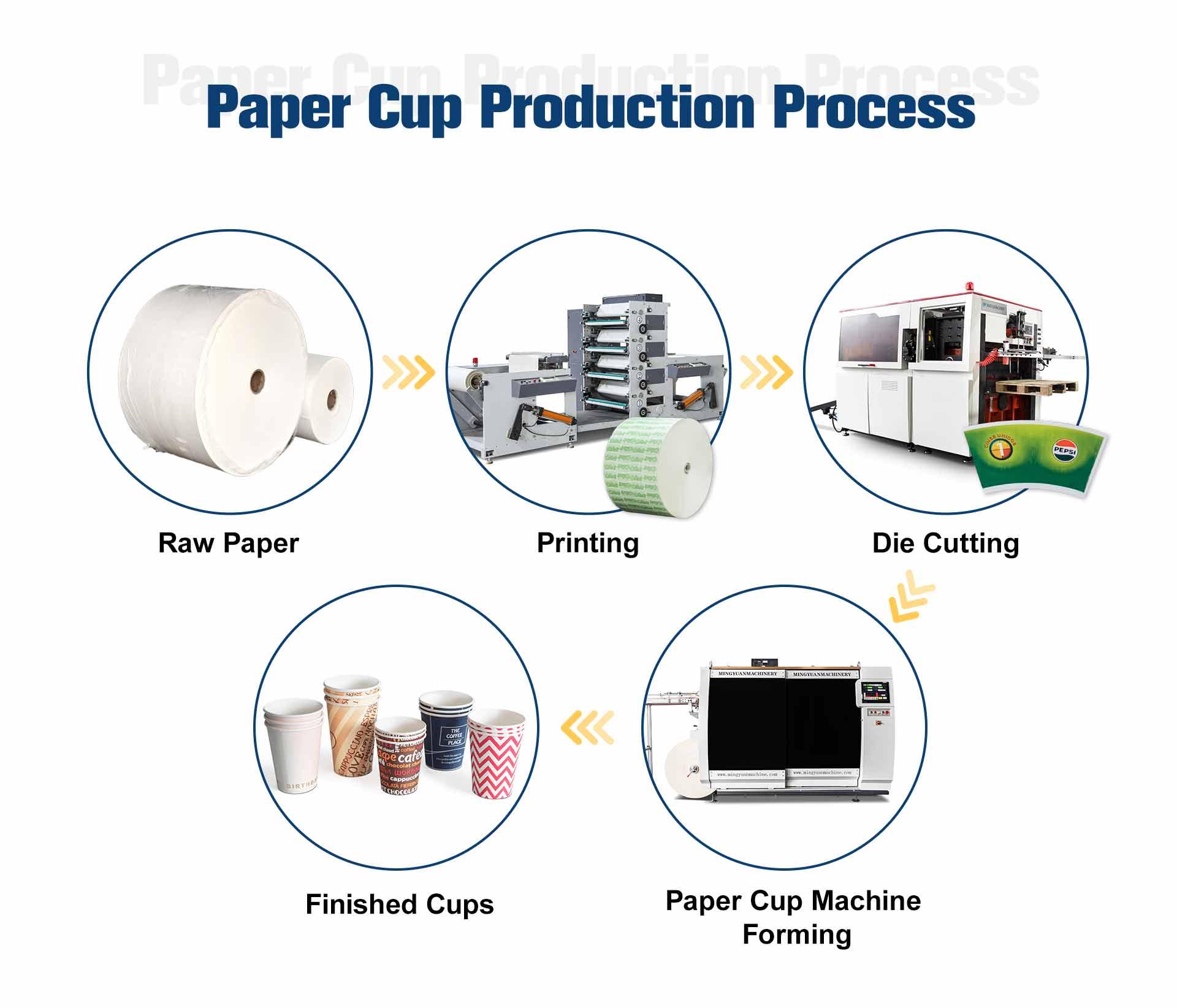

4. Overall Paper Cup Production Process

Full Process:

Raw paper → Printing → Die cutting → Forming → Sealing → Finished cups

Simplified Process (for beginners):

5. Detailed Step-by-Step Production Process

Step 1: Cup Body Material Preparation

Prepare pre-cut paper fans:

 - Blank paper

 - Or printed paper

Step 2: Cup Body Forming

Feed paper into the automatic paper cup machine:

 - Roll into a cylinder

 - Form the cup body

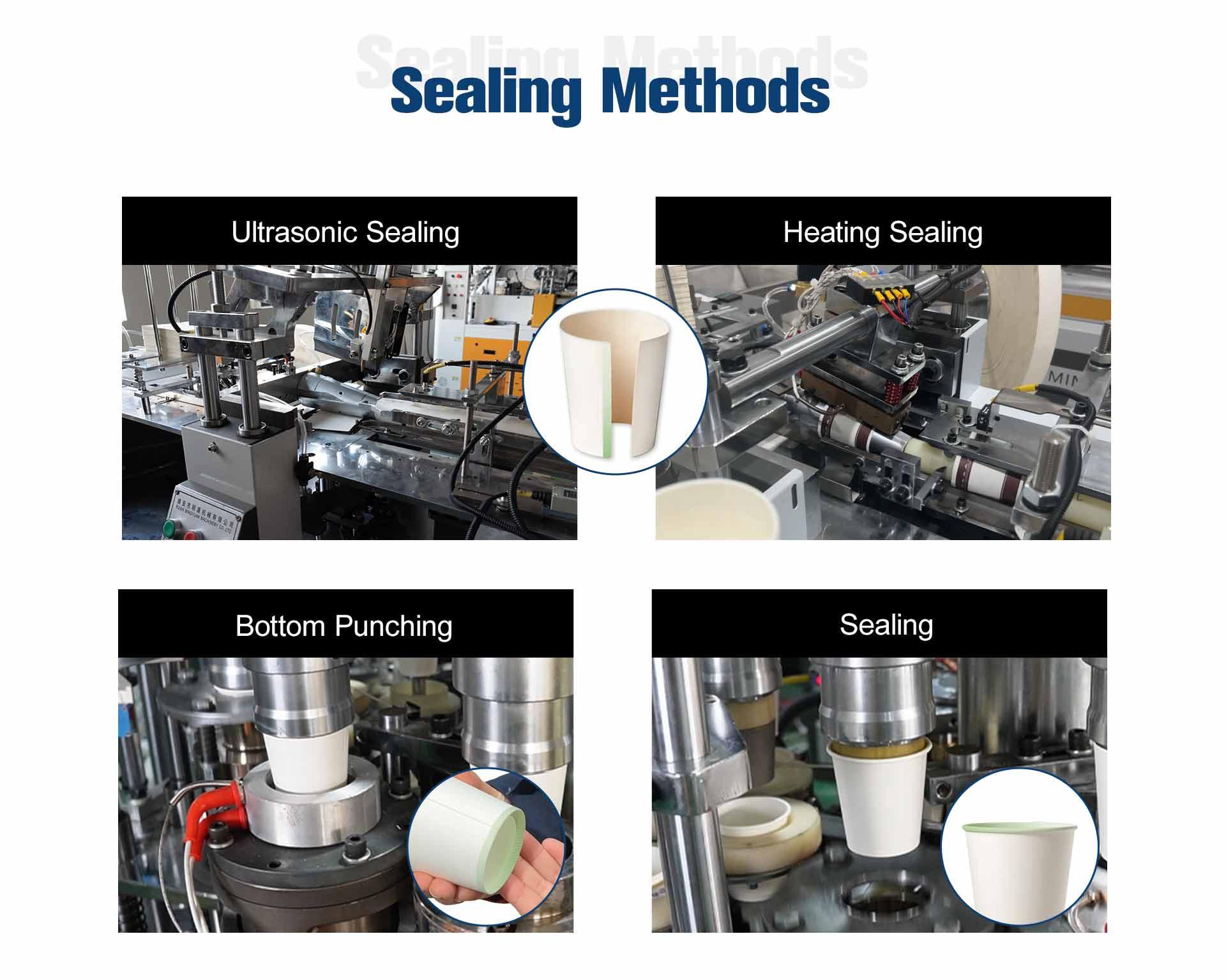

Step 3: Cup Side Sealing (Key Process)

After forming, the side of the cup must be sealed.

This directly affects whether the cup will leak.

Method 1: Ultrasonic Sealing

Principle:

High-frequency vibration generates heat and bonds the material

Features:

 - Strong sealing

 - No heating element required

 - Suitable for high-speed production

Method 2: Copper Heating Sealing

Principle:

Heat melts the PE coating and bonds the material

Features:

 - Simple structure

 - Lower cost

 - Widely used

Simple Understanding:

 - Ultrasonic sealing → higher performance

 - Heating sealing → standard production

Step 4: Bottom Punching and Installation

Important:

 - Bottom paper is in roll form

 - The paper cup machine automatically punches the bottom

At the same time:

 - Bottom is formed

 - Connected to the cup body

Step 5: Bottom Heating and Sealing

Using the heating system to:

 - Seal the bottom

 - Prevent leakage

Step 6: Rim Curling

Processing the cup top:

 - Curling the rim

 - Improving strength and user experience

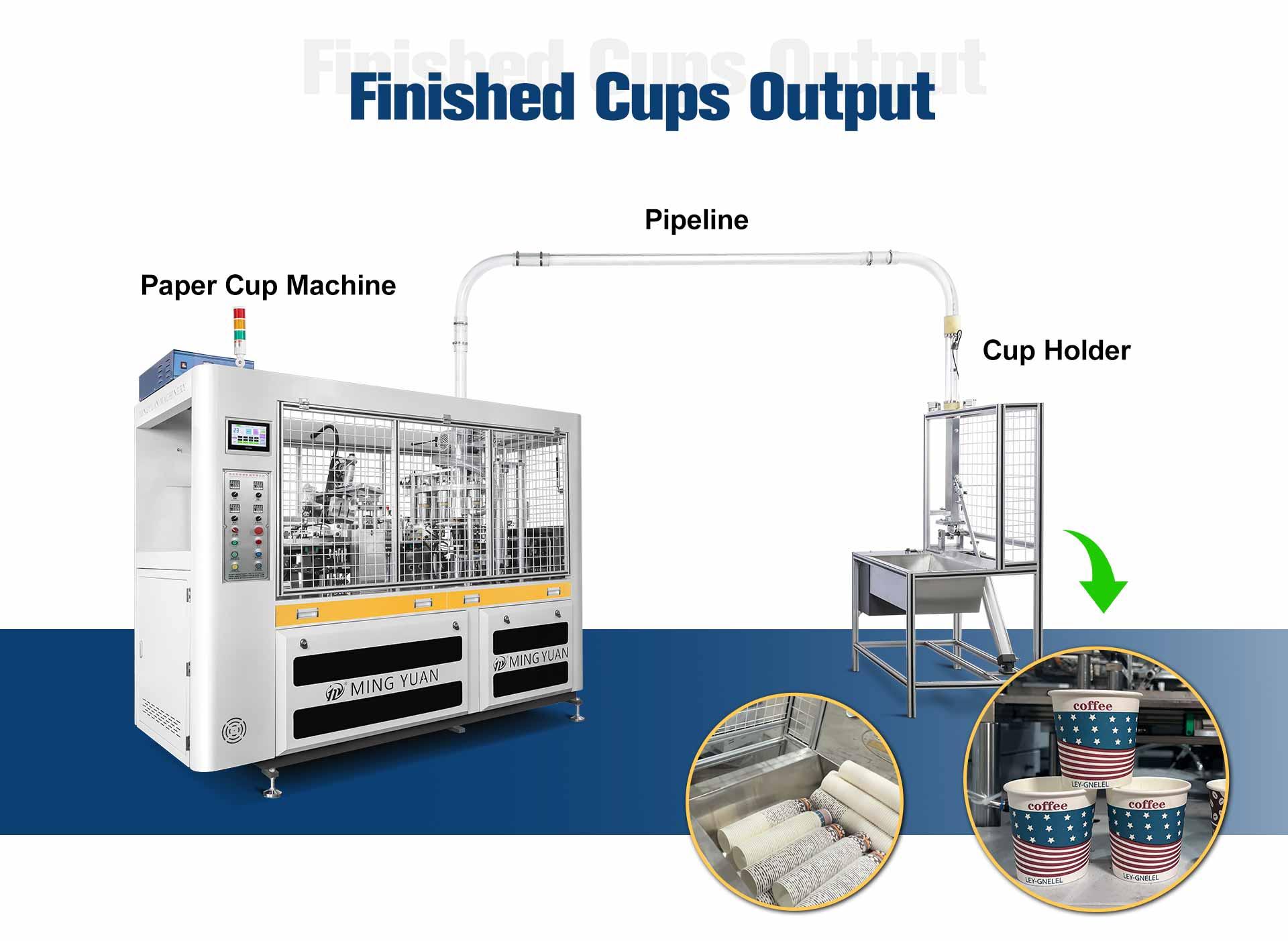

Step 7: Finished Cup Output

After production:

 - Cups are automatically discharged

6. Common Issues Beginners Should Know

1. Misunderstanding Machine Functions

A paper cup machine cannot perform printing or die cutting

2. Sealing Method Selection

Different sealing methods affect:

 - Product quality

 - Machine price

 - Production efficiency

3. Air Compressor Is Essential

Without an air compressor, the machine cannot run

4. Material Selection Problems

Wrong materials may cause:

 - Leakage

 - Unstable production

5. Machine Adjustment and Temperature Control

7. FAQ

Q1: Can one machine complete all processes?

No. But you can simplify production by using pre-made materials.

Q2: Does bottom paper need pre-cutting?

No. It is automatically punched by the machine.

Q3: Which is better, ultrasonic or heating sealing?

Depends on your needs. High-speed and high-quality production prefer ultrasonic.

Q4: Do I need to buy a printing machine?

Not necessary. You can purchase pre-printed paper fans.

Q5: Why is an air compressor required?

8. Conclusion

Paper cup production is a multi-step process that requires coordination.

Full process includes:

 - Printing

 - Die cutting

 - Forming

 - Sealing

 - Finished output

For beginners, a simpler way to start:

 - Purchase pre-cut paper fans

 - Use a paper cup machine for production

Key points to remember:

 - Bottom is automatically punched by the machine

 - Different sealing methods affect quality

 - The machine must work with an air compressor

Understanding these basics will help you:

 - Enter the paper cup business faster

 - Make better equipment decisions
